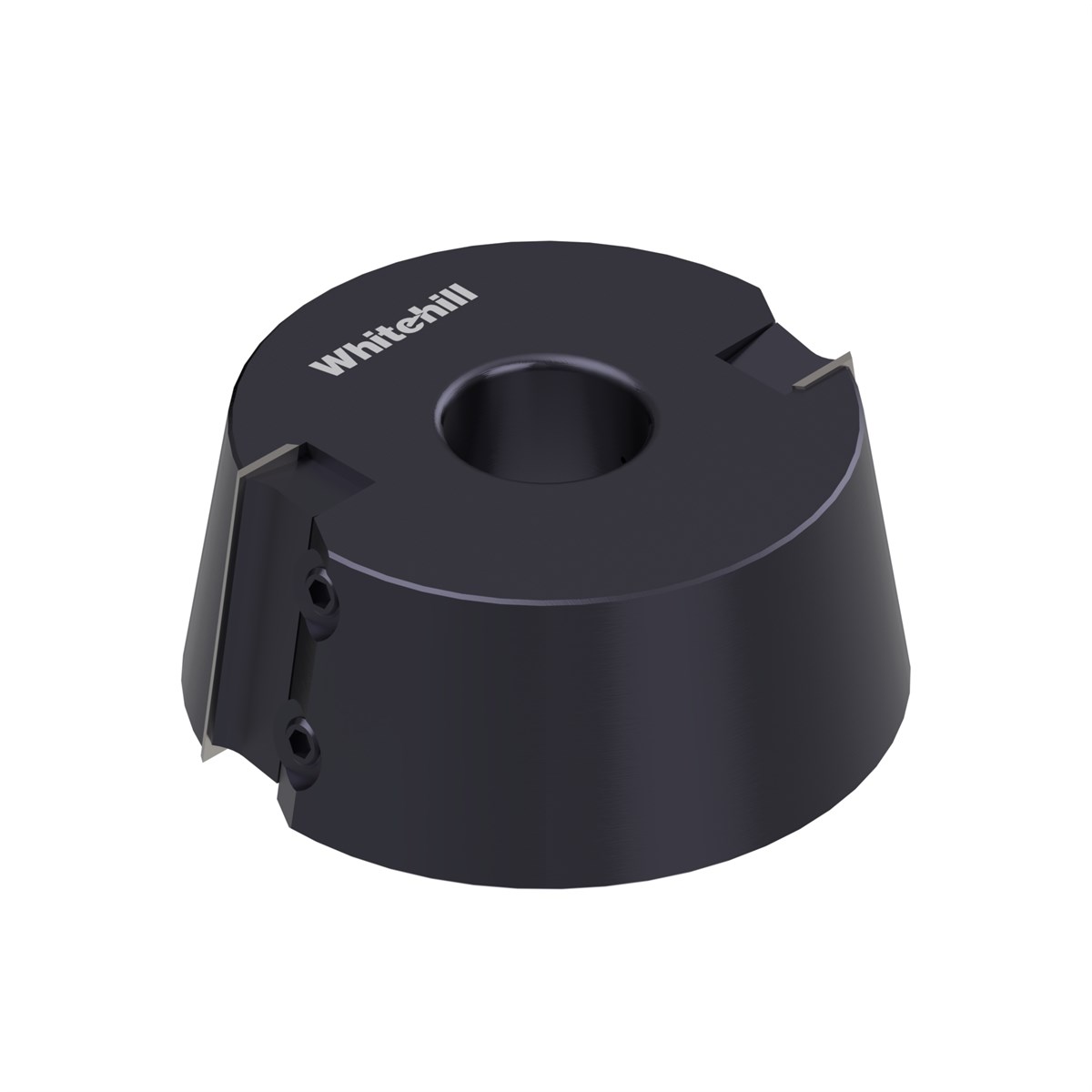

89 x 46 mm 9 Deg 18 mm Rebate TC Mould Head

Code CBS010V1
From
£220.00
(£264.00 including VAT)
Specifications
  • Height46 mm
  • Diameter89 mm
  • Suitable for MDFYes
  • Max RPM8000 rpm
  • Number of Cutters2
  • Product MaterialSTEEL
  • MAN or MECMAN
  • Product Weight2.5 kg
  • Min RPM4500 rpm
  • Custom MadeOnly returnable if faulty - please see returns policy
View Terms & Glossary

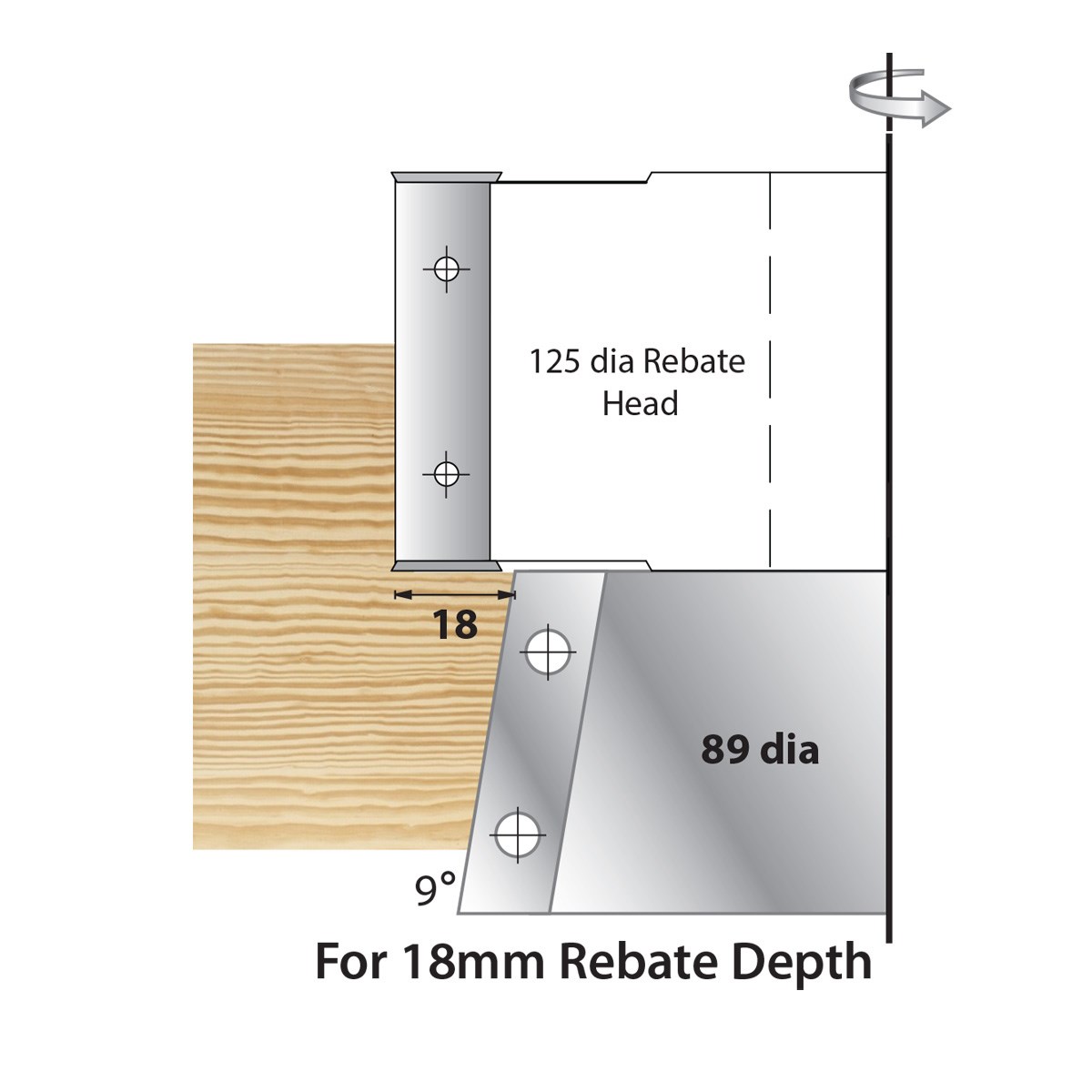

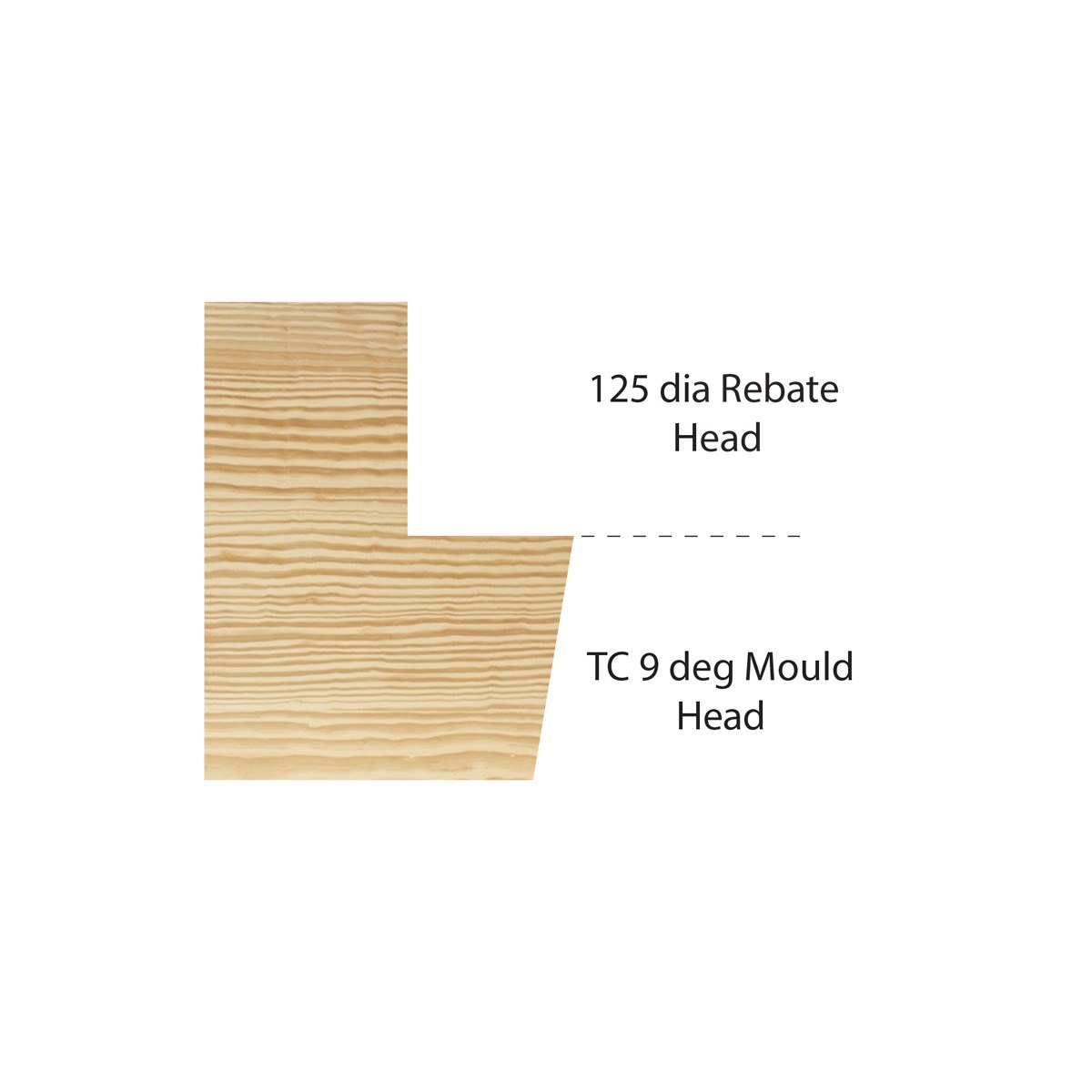

TC Mould Head for 9 degree profile mould to run with 125mm diameter rebate head to give fix depth of rebate (can also run separately).

Features:

  • Cutter head equipped with TC 9 degree reversible knives (can be found in "spares" section).
  • These rebate knives are in tungsten carbide, which will give a clean finish so no sanding is required.
  • Suitable for spindle moulders with manual feed.
  • Tool body in steel.
  • Available in 1 1/4 inch & 30mm bore for spindle moulder.
