NEW 6 - 10.5mm Kitchen & Cabinet Door Set
Code CBS032V5
Specifications
There are currently no specifications for this product.
CloseX
Stock Quantity
Decrease
Increase

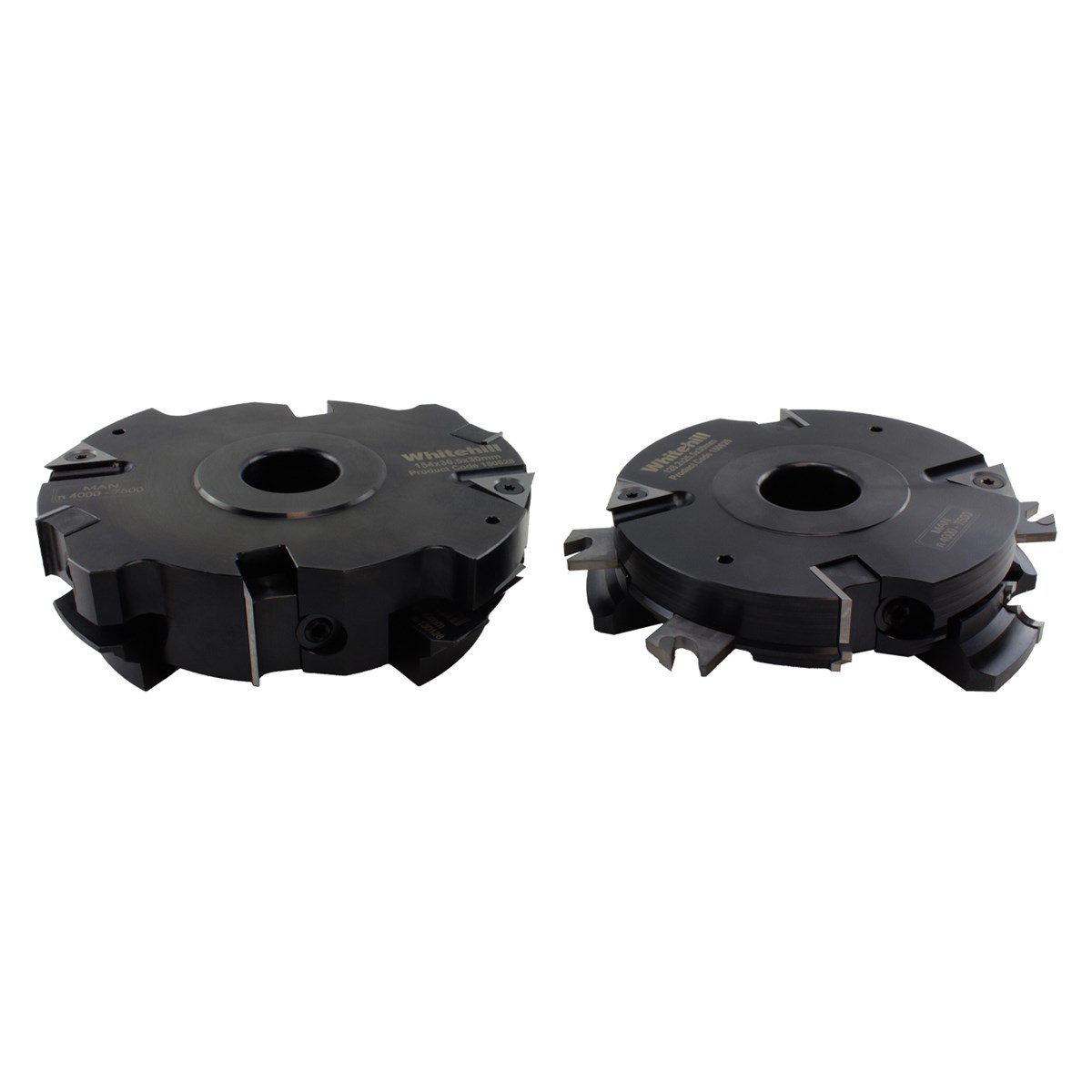

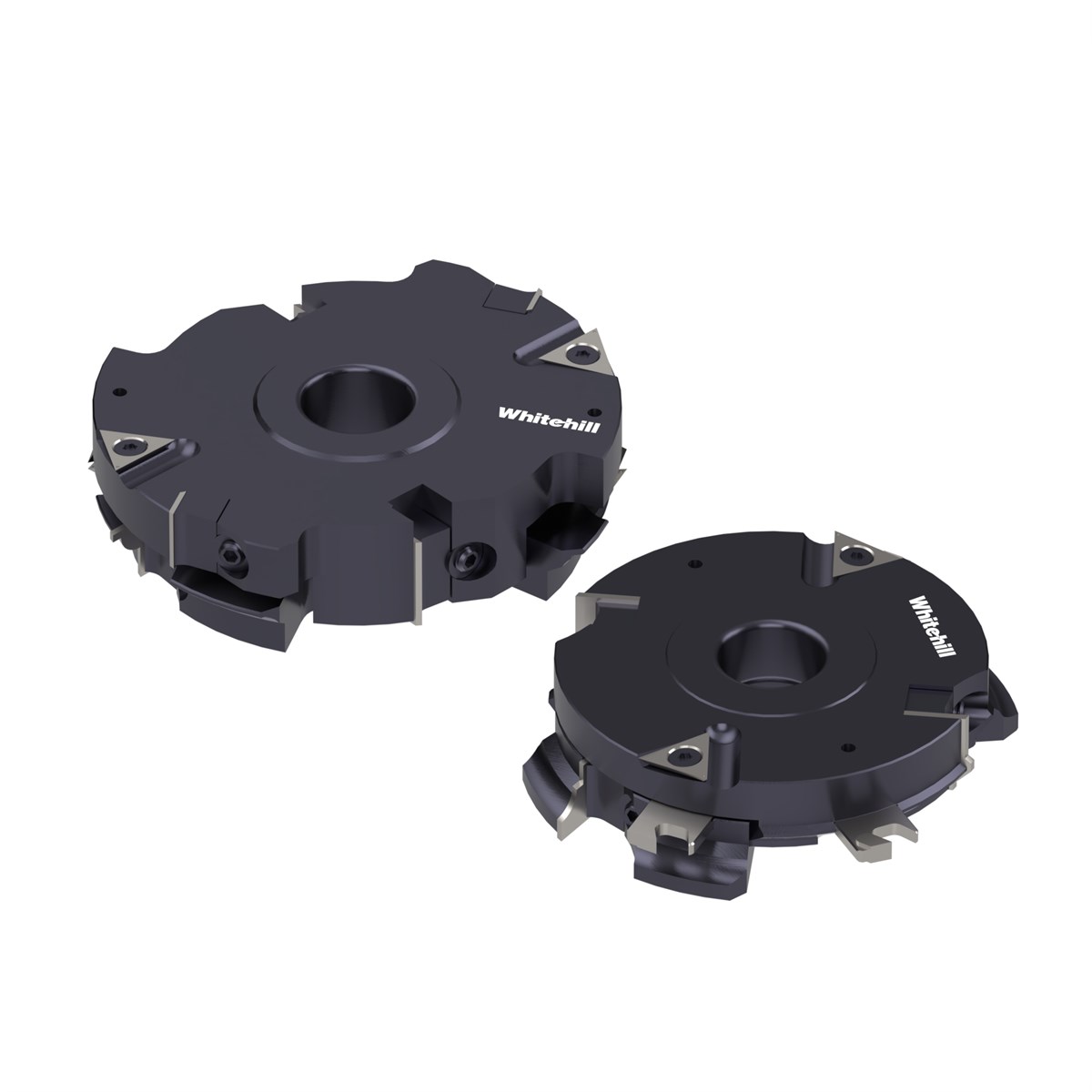

The
Whitehill team have designed a set of four tools to make your life easier when
manufacturing kitchen and cabinet doors on spindle moulders. This set includes
two blocks to mould the wood with a groove, and another two blocks to scribe and
tenon the wood in one pass. Making kitchen and cabinet door production simple
and time efficient for busy workshops.
A
key feature is that it’s constant height and diameter (Also known as “Zero Set
Tooling”). This means once the spindle height and fence are set the next set of
tooling can be placed on the spindle without any further adjustments, saving you
time and the risk of mistakes.
Features:
• Available
in 30mm and 1 ¼ inch bore sizes. More options available on request.
• “Zero Set Tooling” or Constant height and
diameter to make tool changes fast and easy.

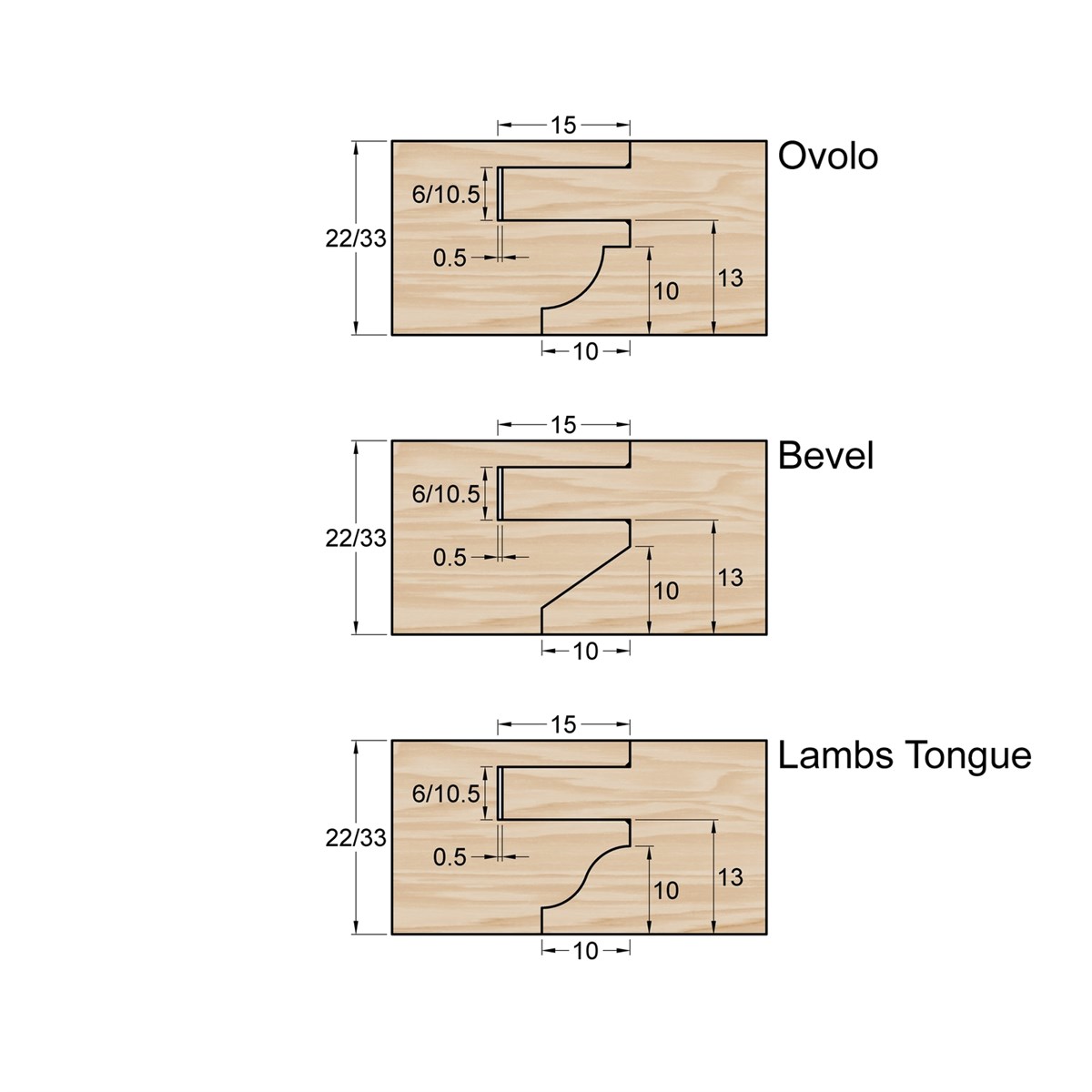

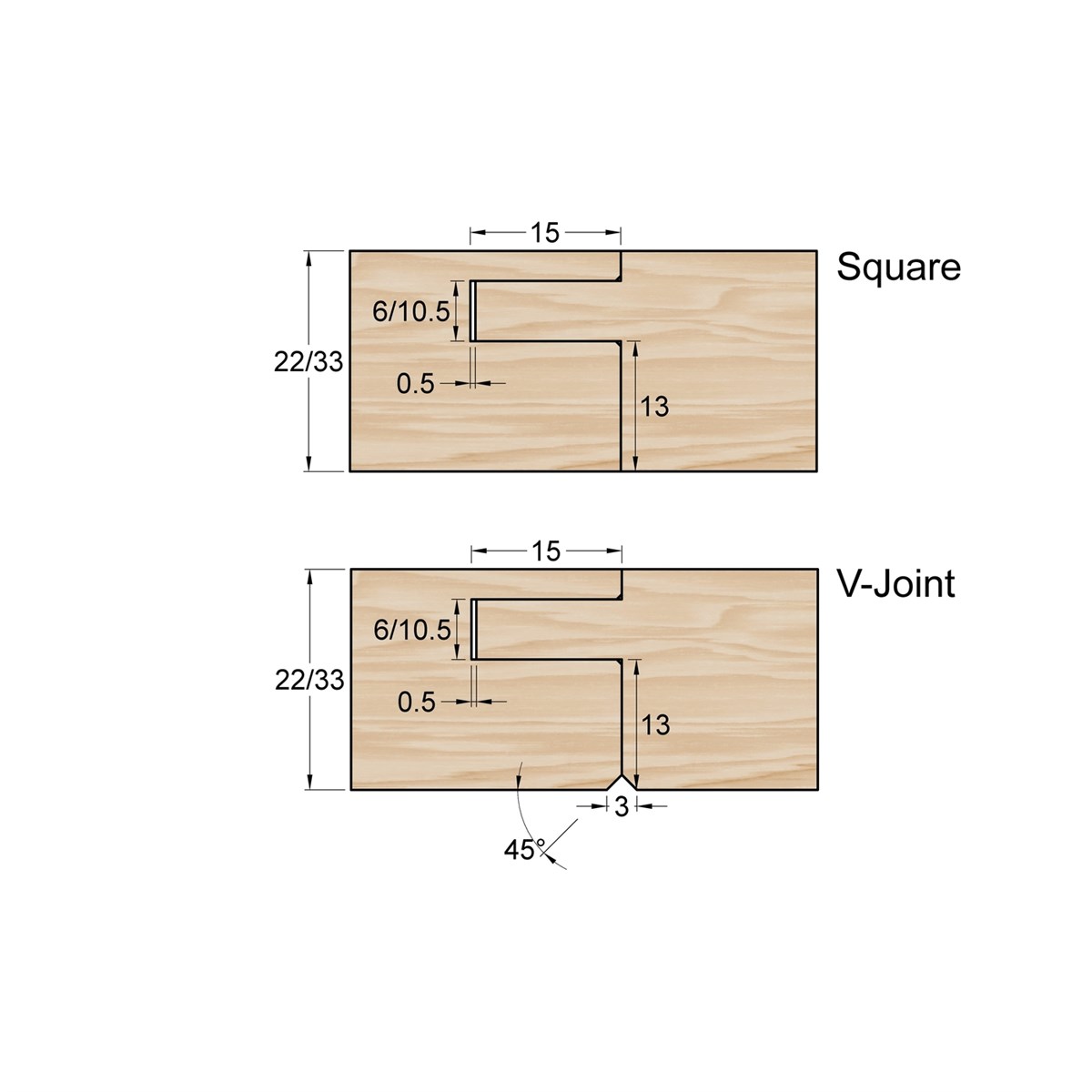

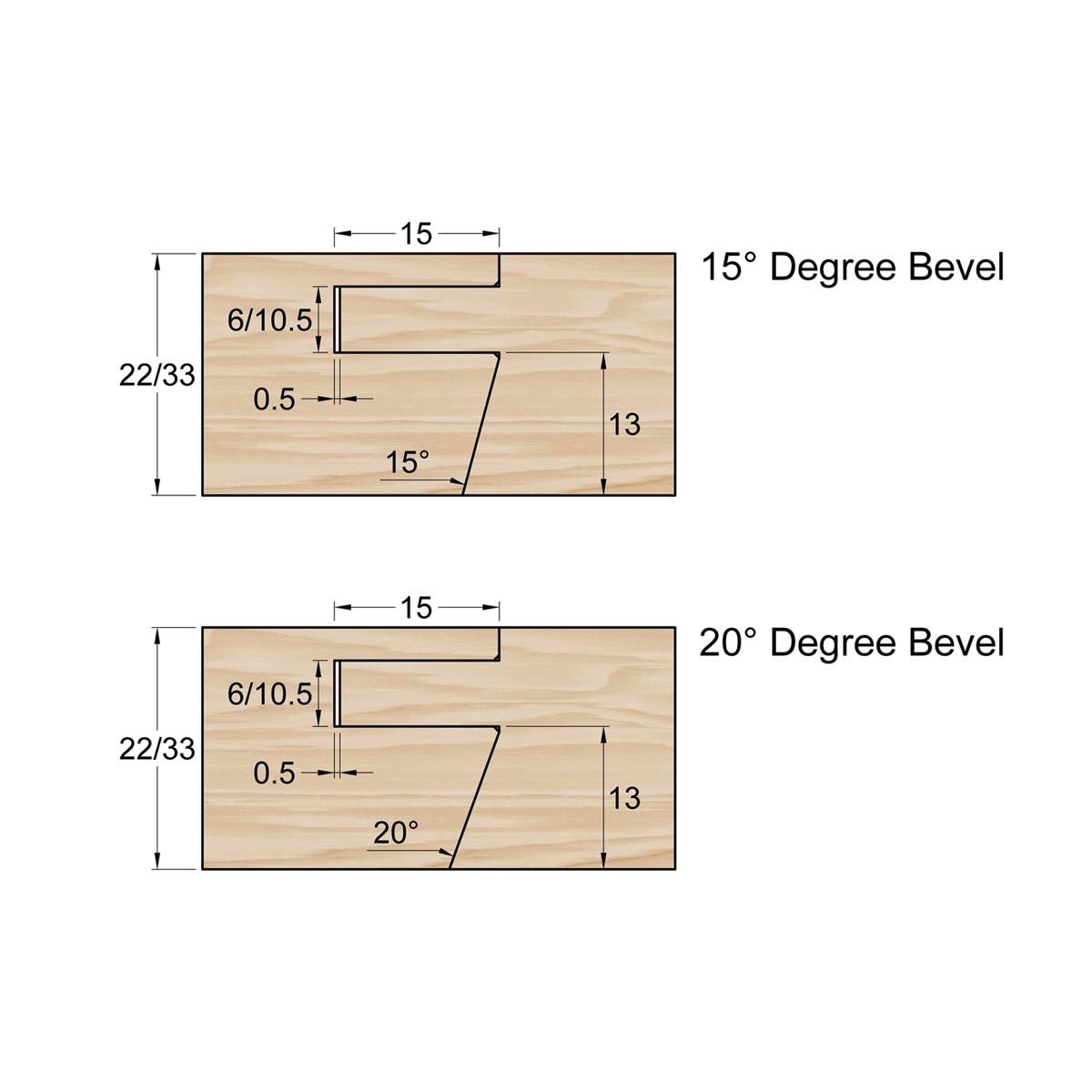

• Adjustable groove and tenons to match panel
size to between 6 - 10.5mm.
• Wide range of
door thickness: 22 -33mm.
• Suitable for
spindle moulders with manual feed.
• Block
features replaceable tungsten carbide knives, all available from Whitehill.
• Blade can only be set in one position,
providing reliable and accurate blade location each time they are replaced.
• All cutters are suitable for a majority of wood
types including MDF, timber, hard & softwoods.
• Highly Customisable.
This tooling can be highly customised depending on what your specific requirements are. While this tooling has been designed for spindle moulders, it is possible for us to design and manufacture tools to fit CNC, Moulder and Tenoner setups and Vertonghen Kitchen Cell machines. We can also make bespoke fixed tooling, HSS or TCT cutters to fit in specific limiter heads for one-off or small production runs, and even design a completely new system with a bespoke profile.
