Lift & Slide Tooling Set 57,58 & 68 mm Wood
Code CBS046V
Specifications
- Height22 mm
- Diameter185 mm
- Suitable for MDFYes
- Max RPM6000 rpm
- Product MaterialALUMINIUM
- MAN or MECMAN
- Product Weight6 kg
- Min RPM3500 rpm
- Custom MadeOnly returnable if faulty - please see returns policy
CloseX
Stock Quantity
Decrease
Increase

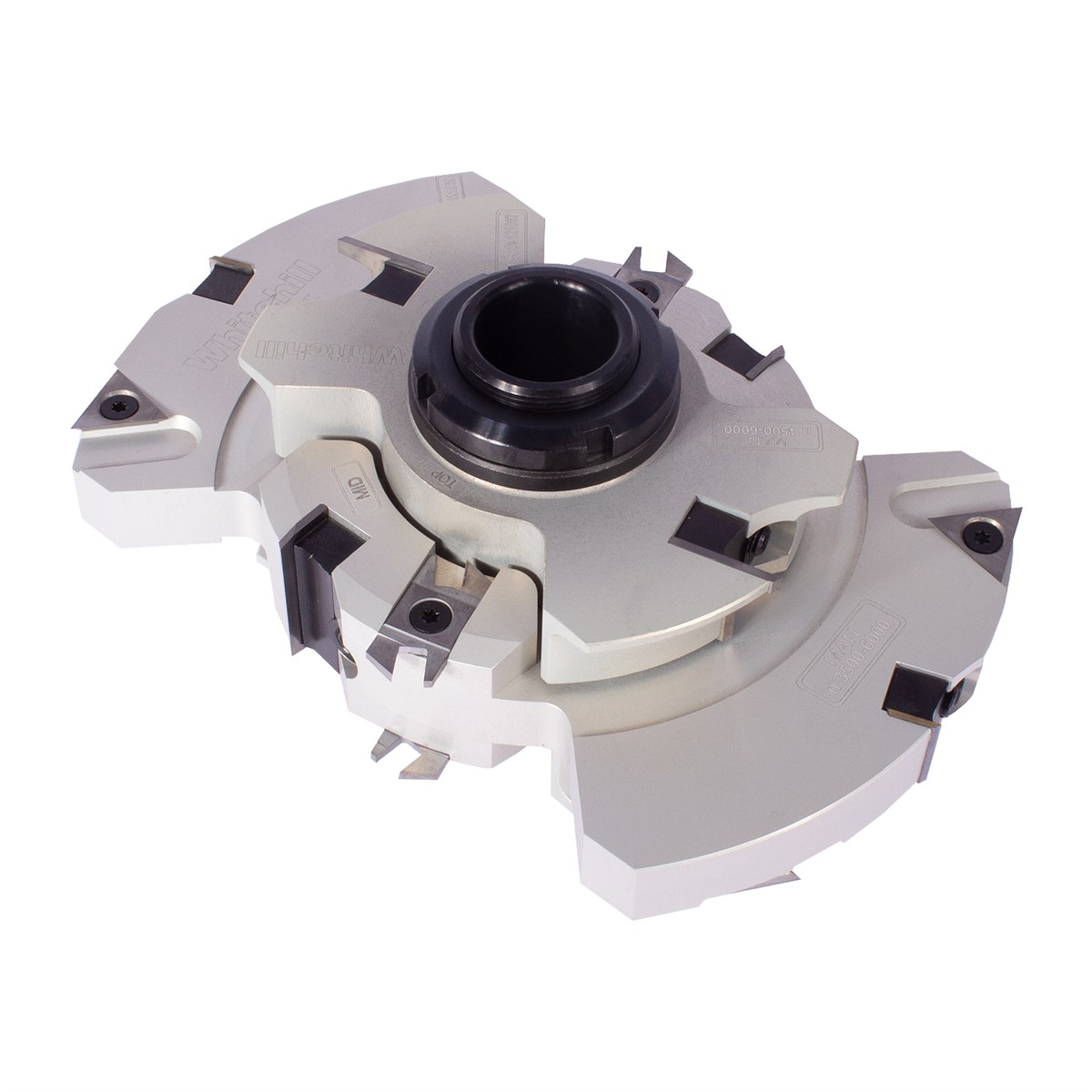

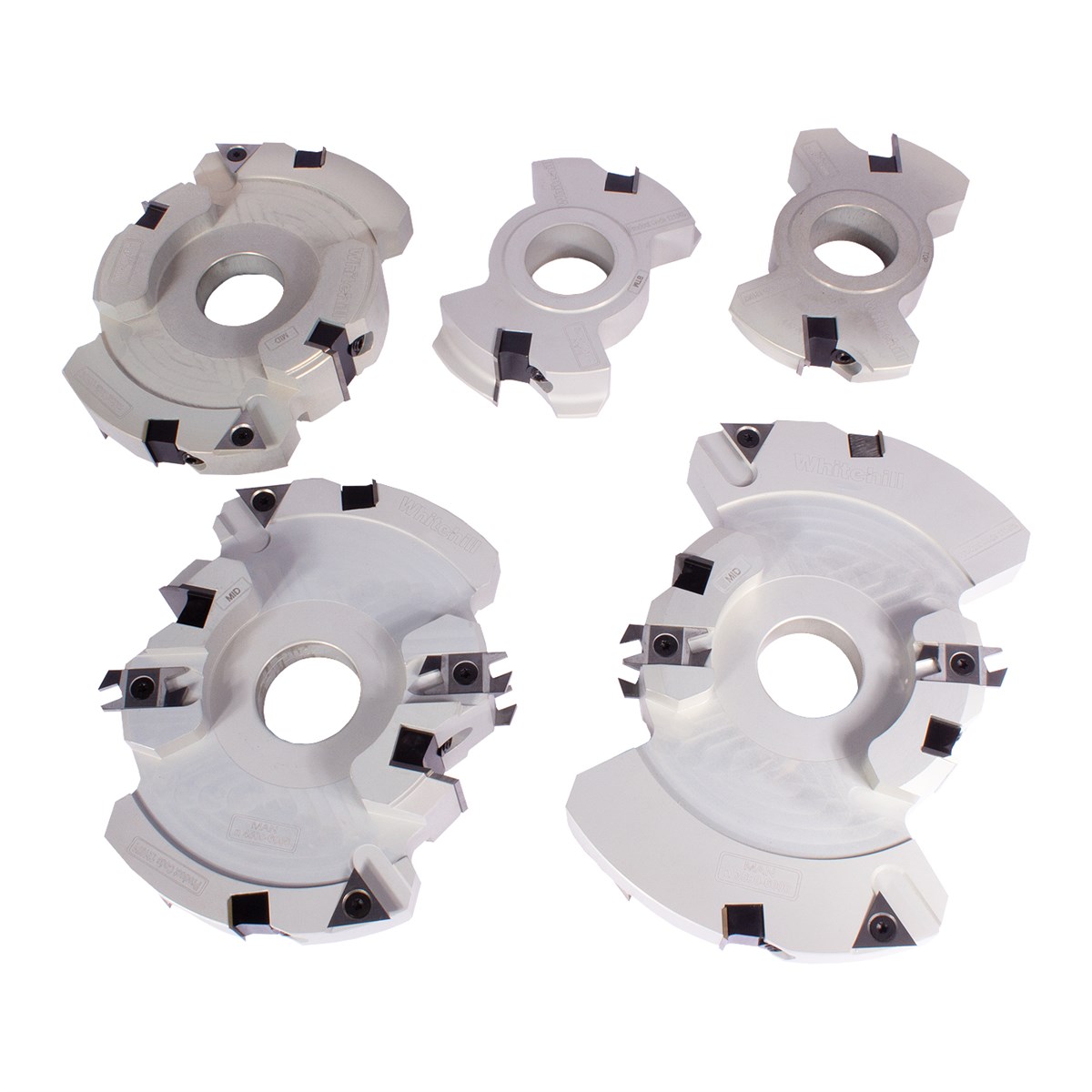

Transforms your lift & slide manufacturing into an easy and efficient process, providing accuracy, consistency and speed. This door tool set designed for spindle moulders comes with five different blocks which can be fitted together with ease.
Features:
- Door set can produce three different profiles; sliding sash bottom rail, sliding sash top rail and jamb side stile (lock side).
- The tooling features the same height and fence settings for all three profiles, enabling a single pass through your machine (Zero-set tooling).
- Includes tungsten carbide knives, which will give a clean finish so no sanding is required.
- Can work around existing machinery.
- Tool set can work with different ironmongery systems (contact us for more information).
- Available in 1 1/4 inch, 30 & 40mm bore for spindle moulder.
Available for hire, for pricing and availability please contact us through our email at sales@whitehill-tools.com or call us at 01582 736 881
