96 x 55 Limiter Heads
Code CBS001V1
Specifications
- Height55 mm
- Diameter96 mm
- Max RPM8000 rpm
- Max Cutting Diameter140 mm
- MAN or MECMAN
- Min RPM4500 rpm
CloseX
Stock Quantity
Decrease
Increase

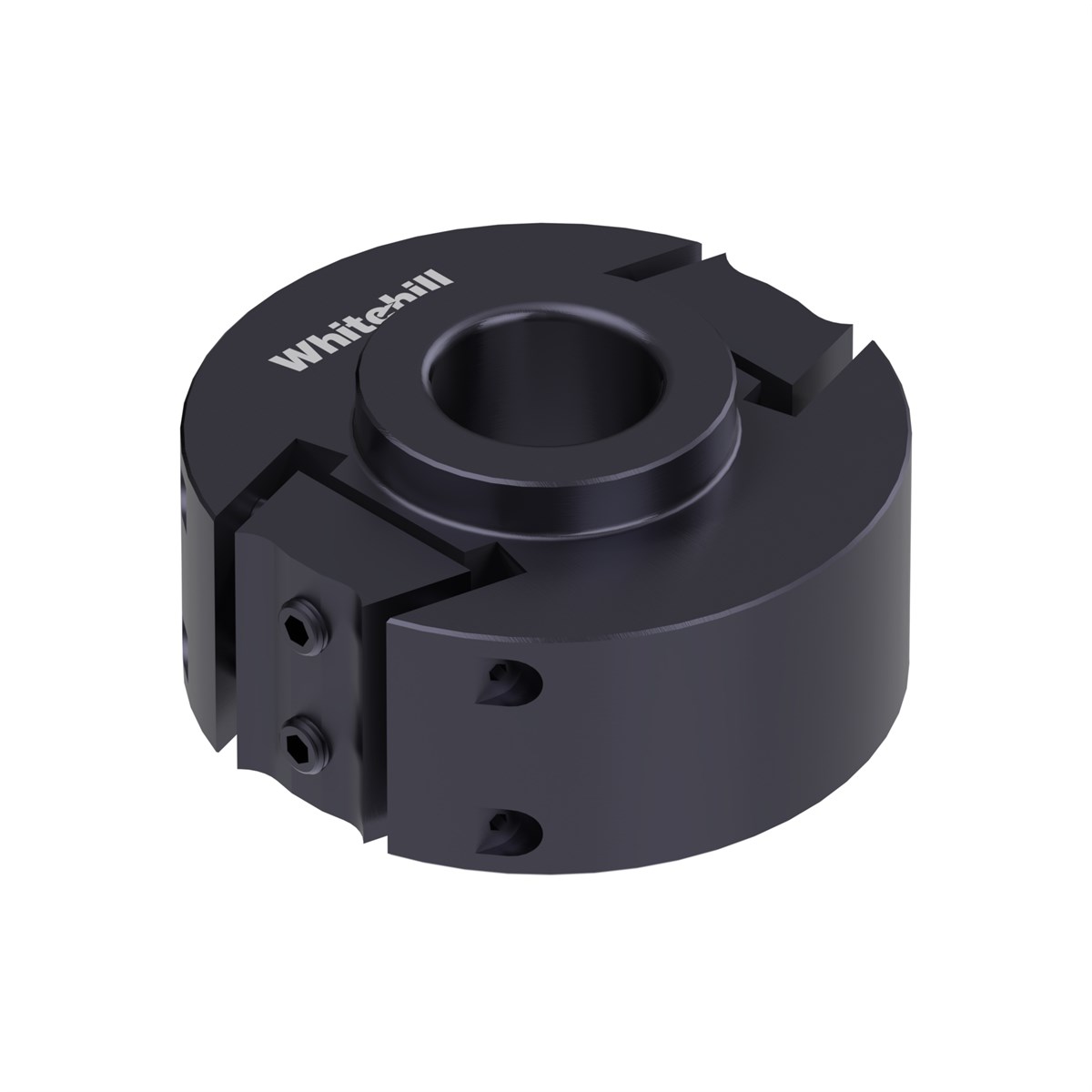

Whitehill 96 x 55 Limiter Heads are designed to fit Whitehill profiled cutters and limiters, as well as custom profiled cutters. To ensure maximum safety and performance, profiled knives and chip limiters should always be used in pairs to achieve precision and efficiency in your machining tasks.
Features:
- This product is designed for use with Whitehill profile cutters only, compatible with Whitehill B Blanks (55x45x4mm / 55x40x4mm thick) & Whitehill 40x40 Blanks (40x40x4mm thick).
- Can take profiled high speed-steel (HSS) and tungsten carbide-tipped (TCT) cutters.
- Can be stacked on the spindle with a Whitehill 125mm diameter rebate block to the machine mould and rebate in one operation for maximum efficiency and consistency.
- Comes equipped with two wedges and two steel packing supports (used for transport purposes only).
- Suitable for spindle moulders with manual feed.
- Tool body available in steel.
- Available in 1¼ inch or 30mm bore for spindle moulder.
