9 Degree Rebate Head

Code CBS002V7

From

£368.00

(£441.60 including VAT)

Decrease

Increase

Add To Wishlist

Specifications

Height81 mm
Diameter125 mm
Suitable for MDFYes
Max RPM8000 rpm
Number of Cutters2
Number of Spurs4
Shear or Straight?Straight
Product MaterialALUMINIUM
MAN or MECMAN
Product Weight2.7 kg
Min RPM4500 rpm
Custom MadeOnly returnable if faulty - please see returns policy

View Terms & Glossary

Product Information
Reviews

Spares

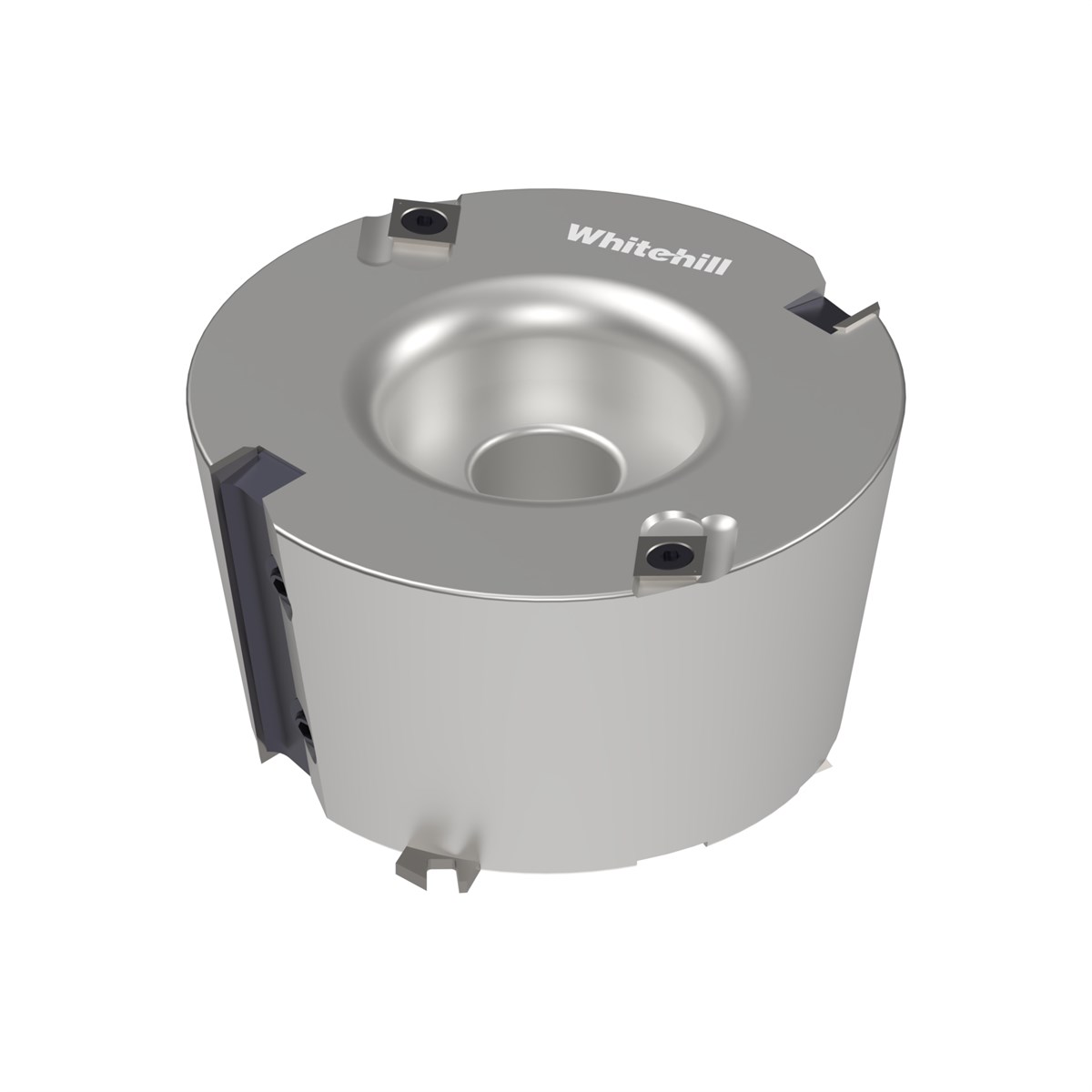

Whitehill 9 Degree Rebate Head designed for rebating, window profiling and rebating with additional profiling for MDF boards, ply or hard-textured, glued and solid timber.

Features:

Cutter head equipped with TC reversible knives and spurs (can be found in "spares" section).
TC Rebate knives are straight cut configured tungsten carbide for exceptional durability and clean cut in all materials.
Can be stacked on the spindle with a Whitehill 96 x 55 limiter head or a Whitehill TC Mould Head to the machine mould and rebate in one operation for maximum efficiency and consistency.
Available with 2.7mm, 3mm, or no groover tips.
Suitable for spindle moulders with manual feed.
Tool body available in aluminium.
Available in 1¼ inch or 30mm bore for spindle moulder.
