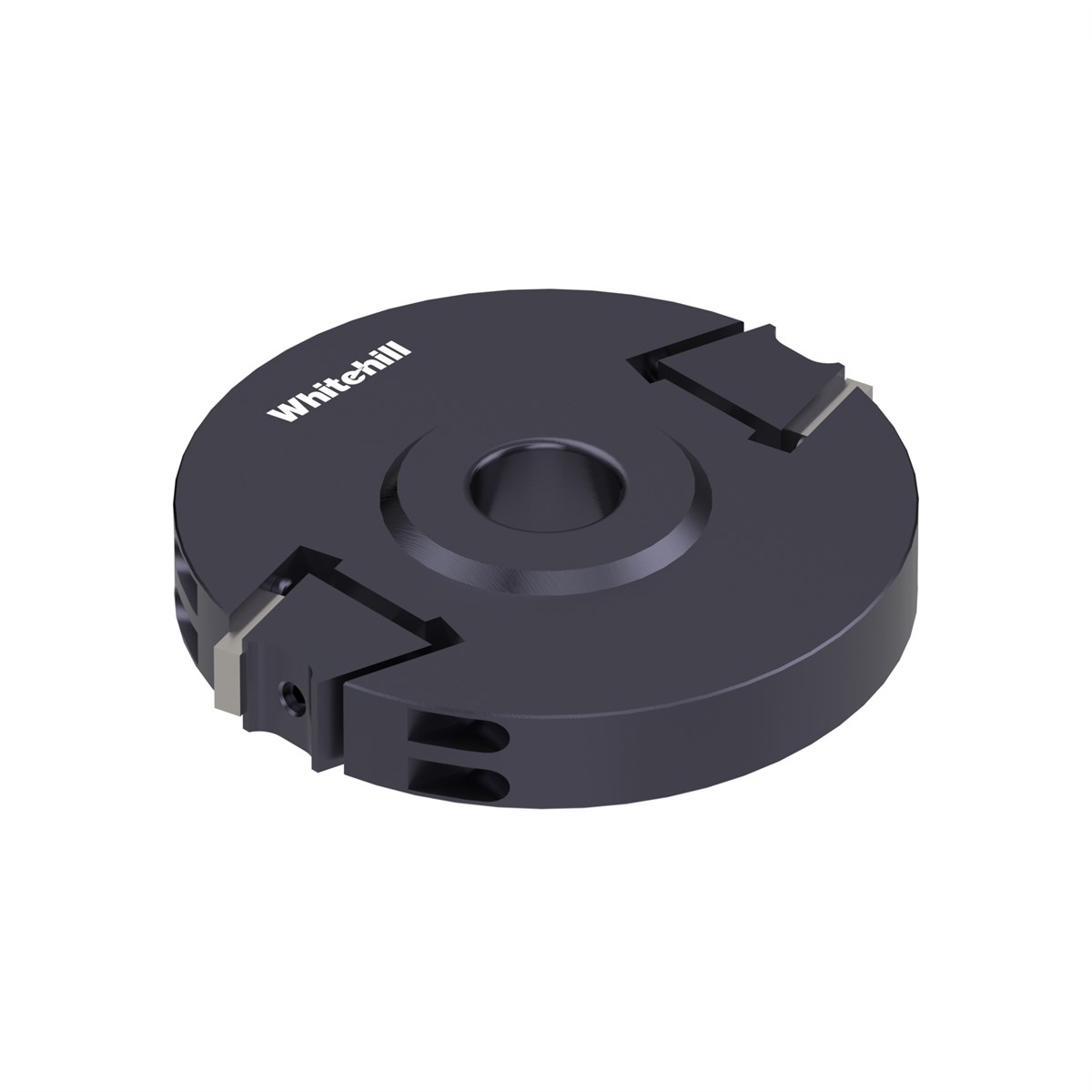

150 x 30 x 1¼" Bore Tenon Disc Cutter Head
Code 160A00060
Estimated dispatch date 06 Nov 2020
Specifications
- Height30 mm
- Diameter150 mm
- Max RPM6500 rpm
- Max Depth of Cut74 mm
- Product MaterialSTEEL
- Max Cutting Diameter200 mm
- MAN or MECMAN
- Product Weight3 kg
- Min RPM3500 rpm
- Bore Diameter1 1/4 inches
Limiter cutter head designed to cut tenon profiles. Can be used independently or in conjunction with another tenon disc (with a spacer between) for tenon thickness. Ideal for cutting square or profiled scribe. Compatible with A blanks 30 x 55 x 6 mm thick. Profiled knives and chip limiters must always be used in pairs. Block suitable for spindle moulders with manual feed. PLEASE NOTE: For max cutting circle add 50 mm cutter projection to disc diameter (ie. 125 mm dia tenon disc = 175 dia overall max cutting circle)
