170 x 50 x 30 mm Vari Angle Head
Code 250S00060
Estimated dispatch date 07 May 2021
Specifications
- Height50 mm
- Diameter170 mm
- Suitable for MDFYes
- Max RPM6500 rpm
- Product MaterialSTEEL
- Max Cutting Diameter195 mm
- Tilt+/- 90 deg
- Groove Size90 mm
- MAN or MECMAN
- Product Weight4.5 kg
- Min RPM3500 rpm
- Bore Diameter30 mm

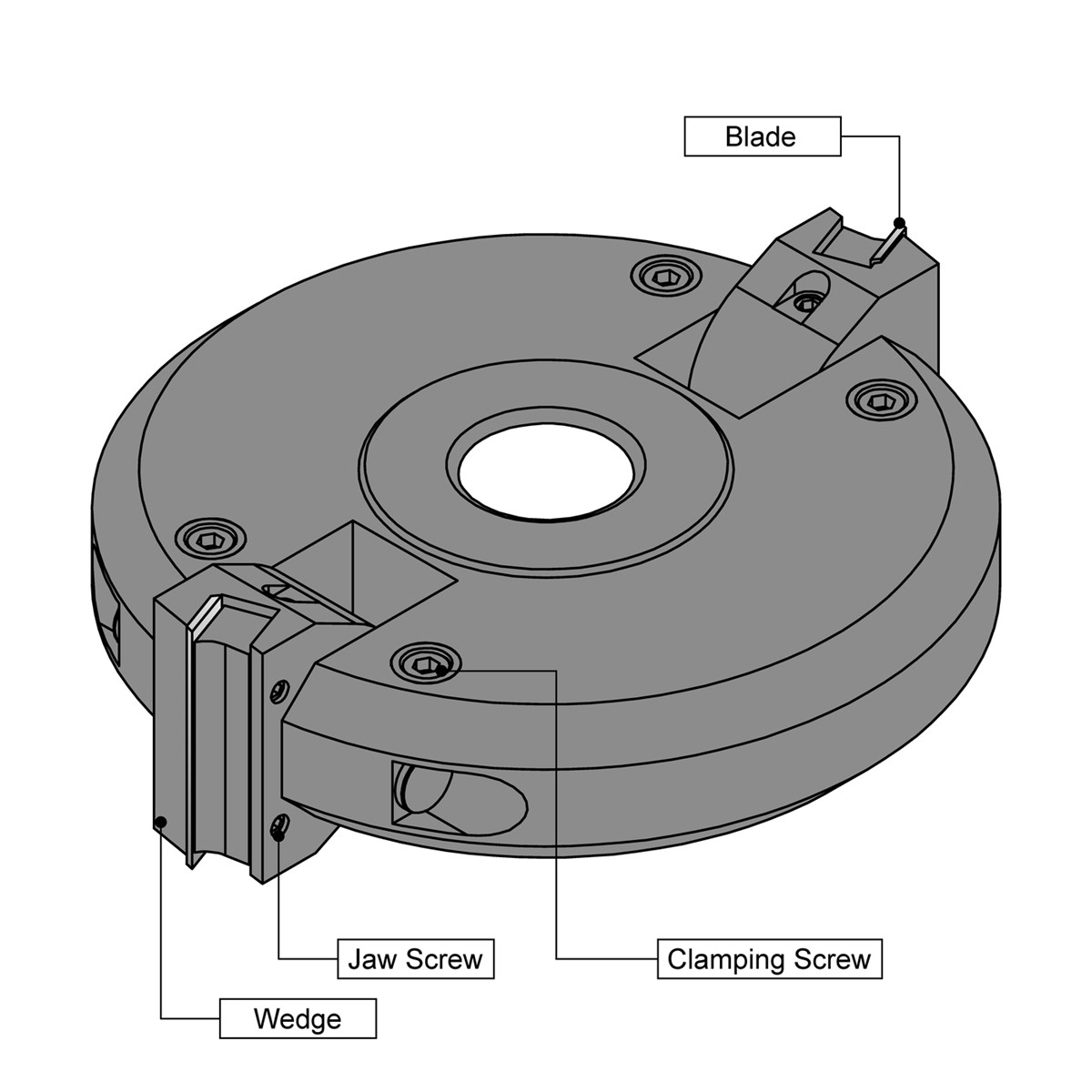

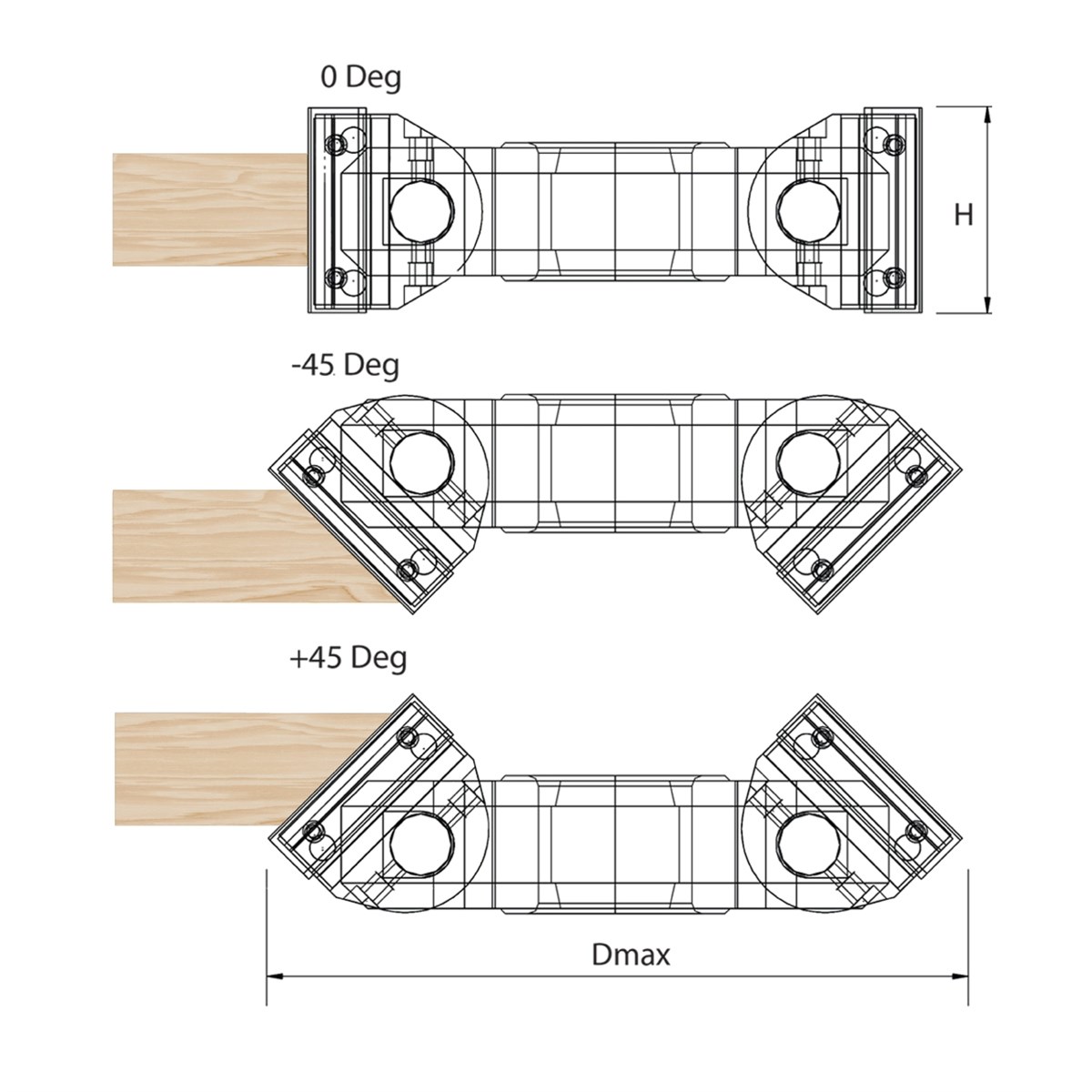

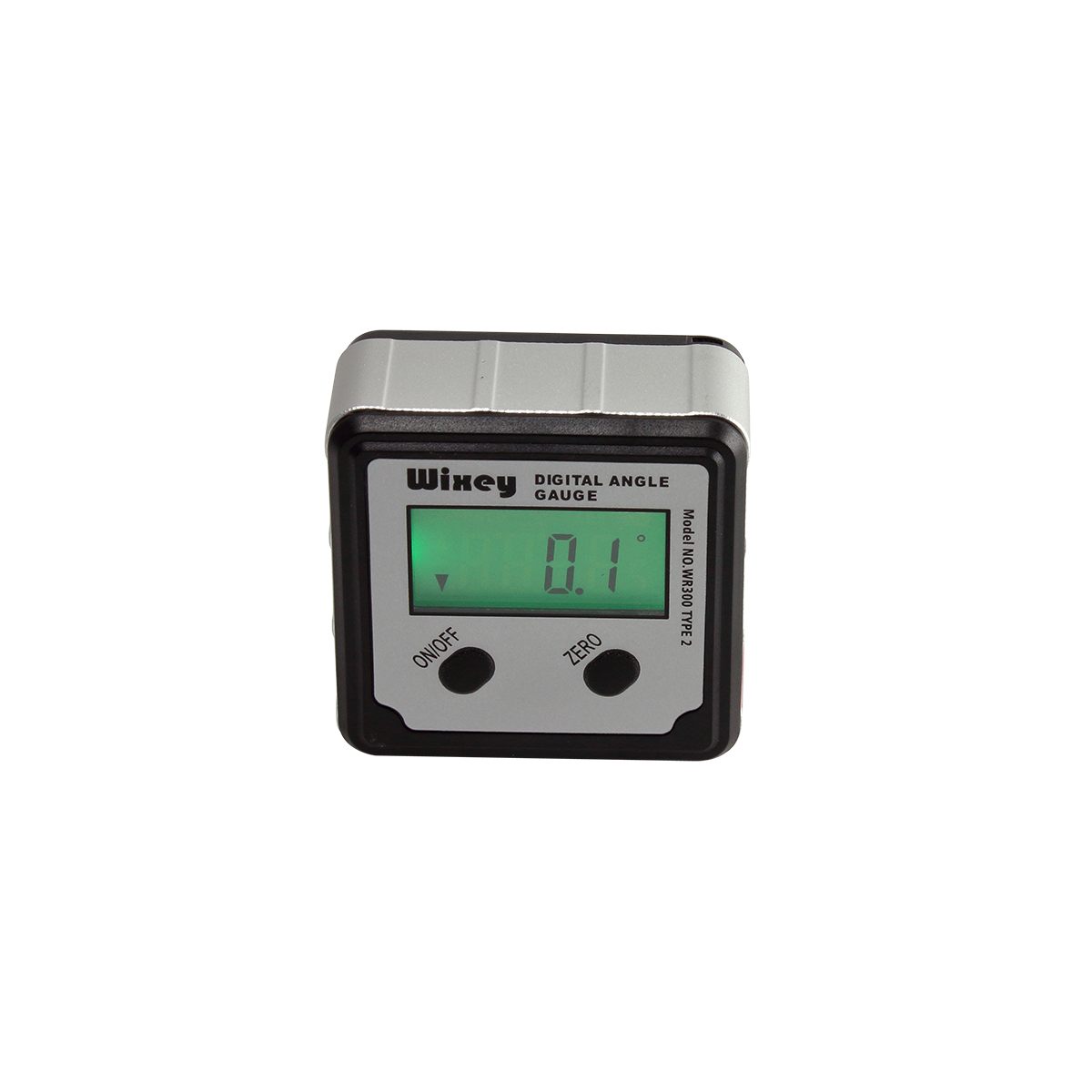

170 x 50 x 30 mm Vari Angle Head. Fitted with standard TC reversible blades. Cutter head design for chamfering in various angles. Digital protractor supplied with tooling for precise (0.1 deg) setting. Fitted with standard TC reversible blades. Swivel jaw adjustable on both sides from -90 to +90 degrees. Tool body in steel, suitable for spindle moulders with manual feed.
