120 x 40 mm Vari Angle Head with Digital Protractor

Code CBS016V1
From
£220.00
(£264.00 including VAT)
Decrease
Increase
Specifications

There are currently no specifications for this product.

View Terms & Glossary

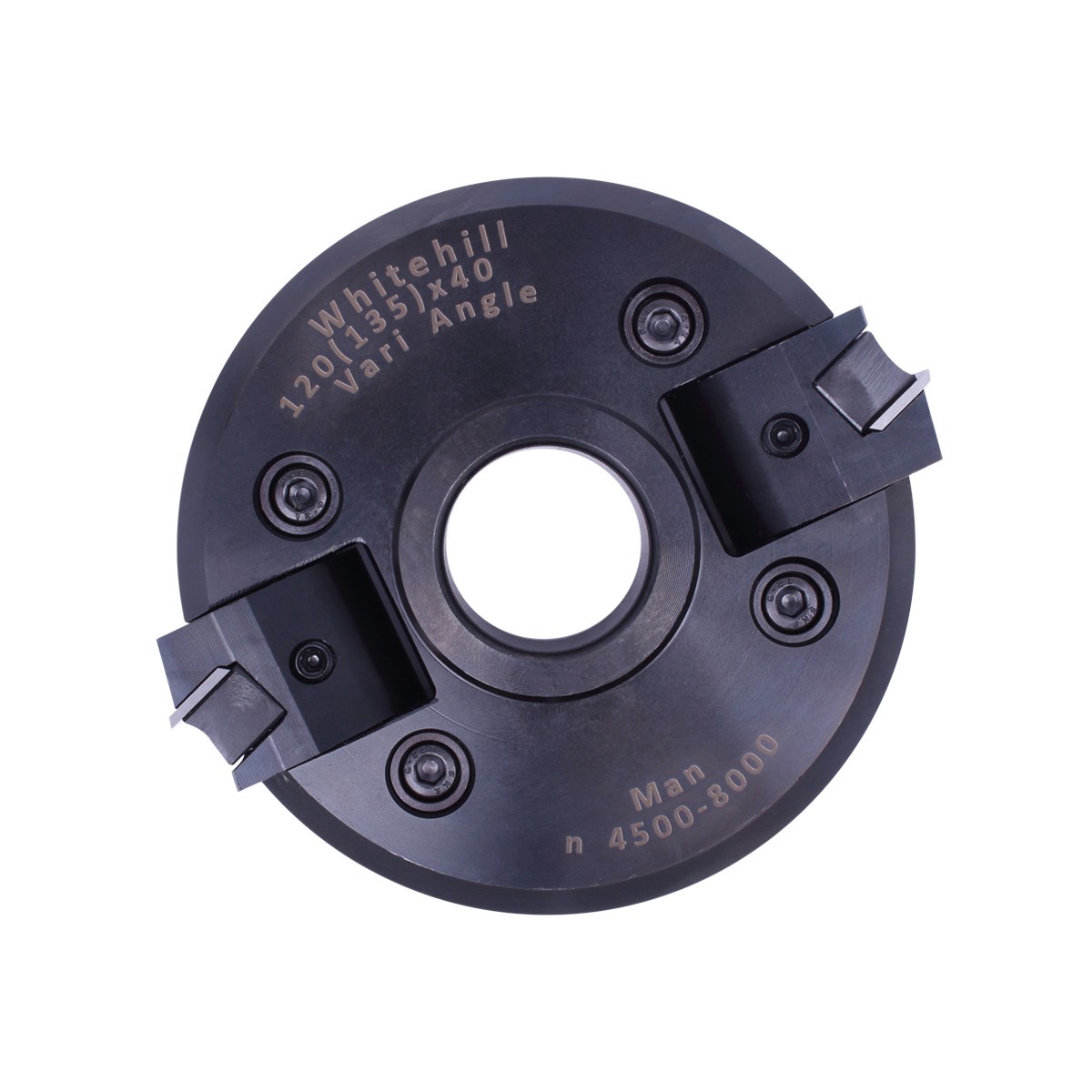

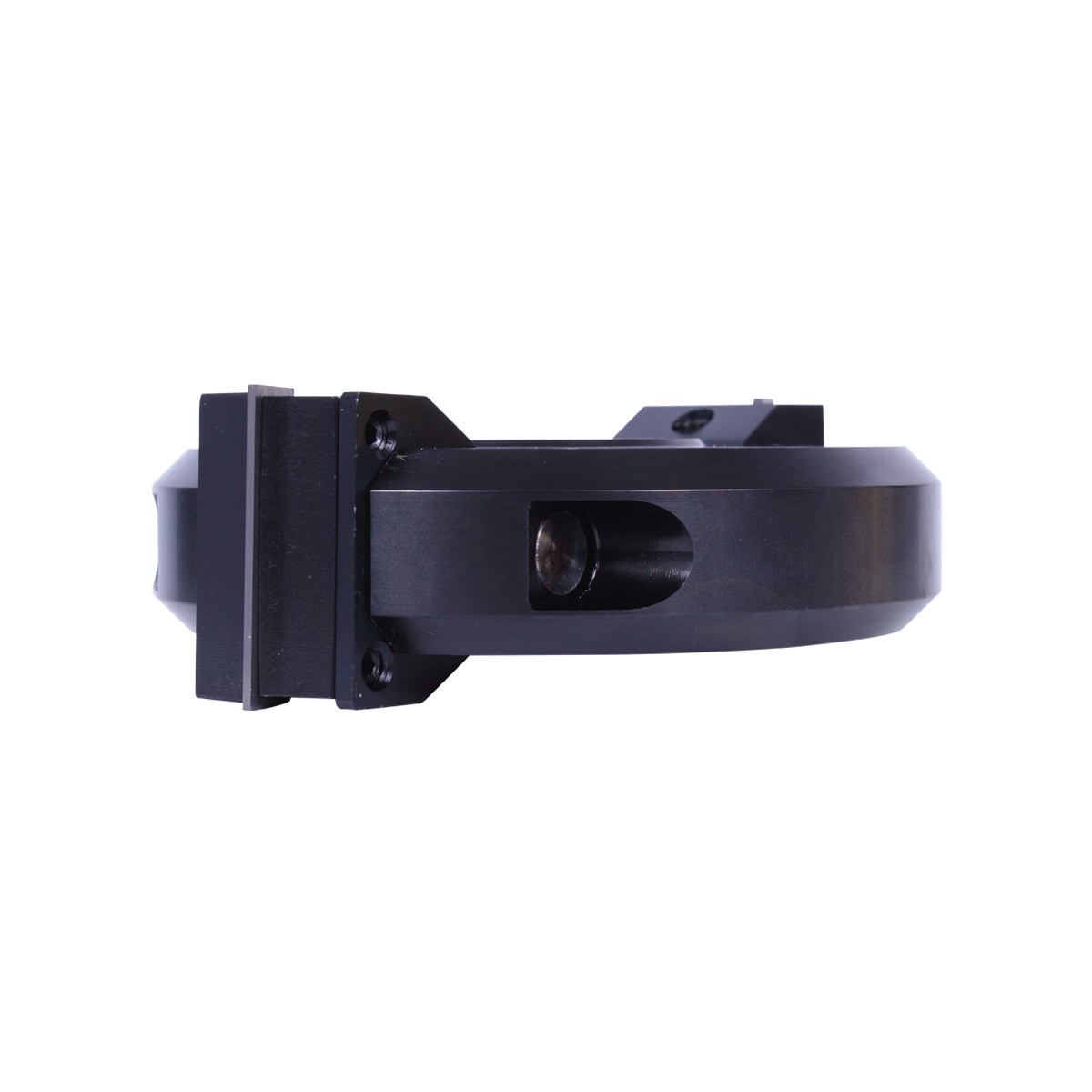

Whitehill Vari Angle Head (Digital Protractor Included) is designed for chamfering in various angles. The digital protractor is supplied to all Vari Angle Heads and is used for precise (0.1 degree) setting.

Features:

  • Available in two different diameter sizes - 120 or 170 mm.
  • Available in three different height sizes - 40, 50 & 60 mm.
  • Swivel jaw adjustable on both sides from -45 to 45 deg in 40 mm block and -90 to 90 deg in 50 and 60 mm block.
  • Cutter head equipped with two standard TC reversible knives (can be found in "spares" section).
  • These rebate knives are in tungsten carbide, which will give a clean finish so no sanding is required.
  • Suitable for spindle moulders with manual feed.
  • Tool body in steel.
  • Available in 1¼ inch, 30, 35 & 40mm bore for spindle moulder.
