200 x 8 mm 63 Seal Head
Code CBS015V1
Specifications
- Height8 mm
- Diameter214 mm
- Suitable for MDFYes
- Max RPM6500 rpm
- Number of Cutters4
- Number of Spurs4
- Screw Drive2.5mm Allen
- Product MaterialALUMINIUM
- Groover Included3 mm
- MAN or MECMAN
- Product Weight1 kg
- Min RPM3500 rpm
- Custom MadeOnly returnable if faulty - please see returns policy
CloseX
Stock Quantity
Decrease
Increase

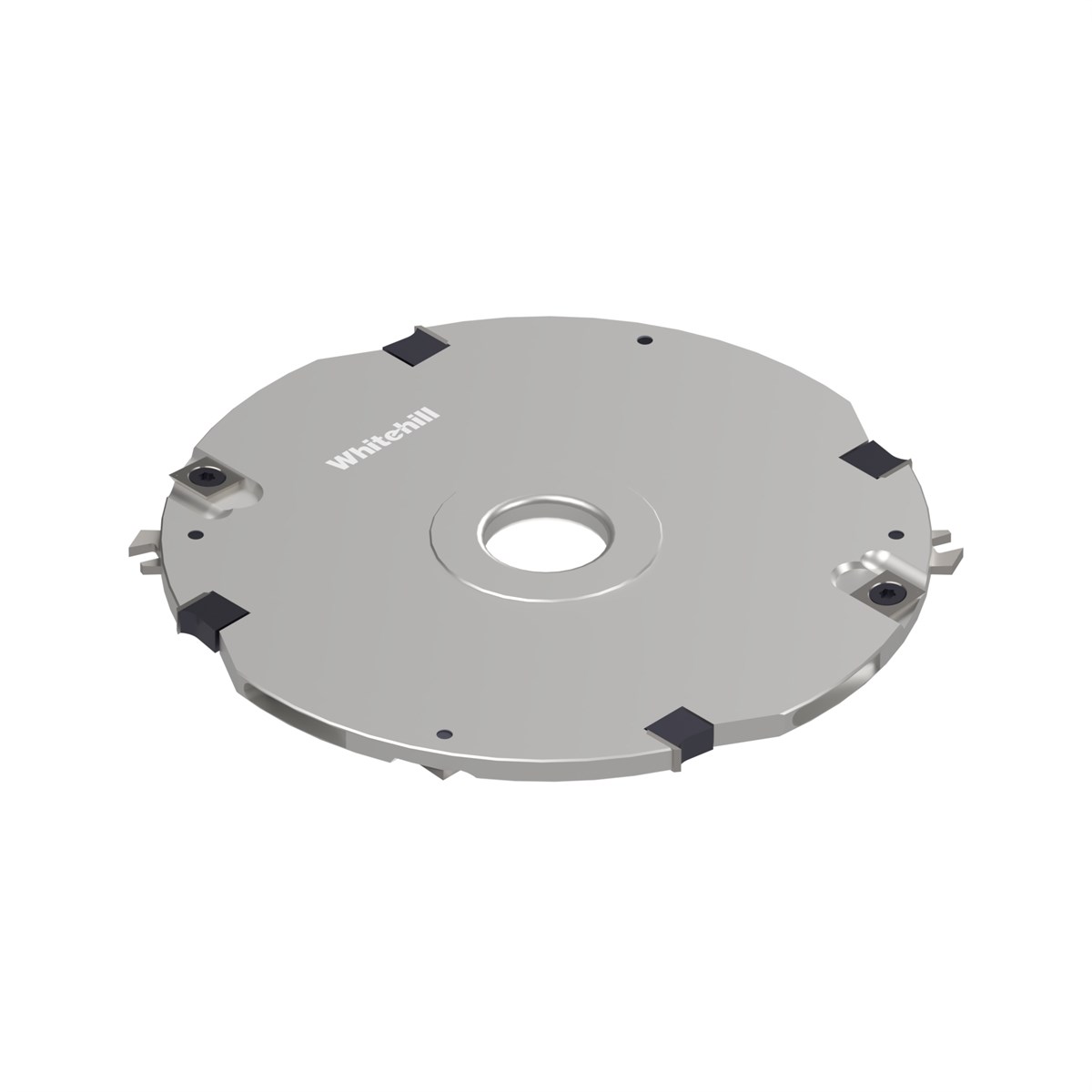

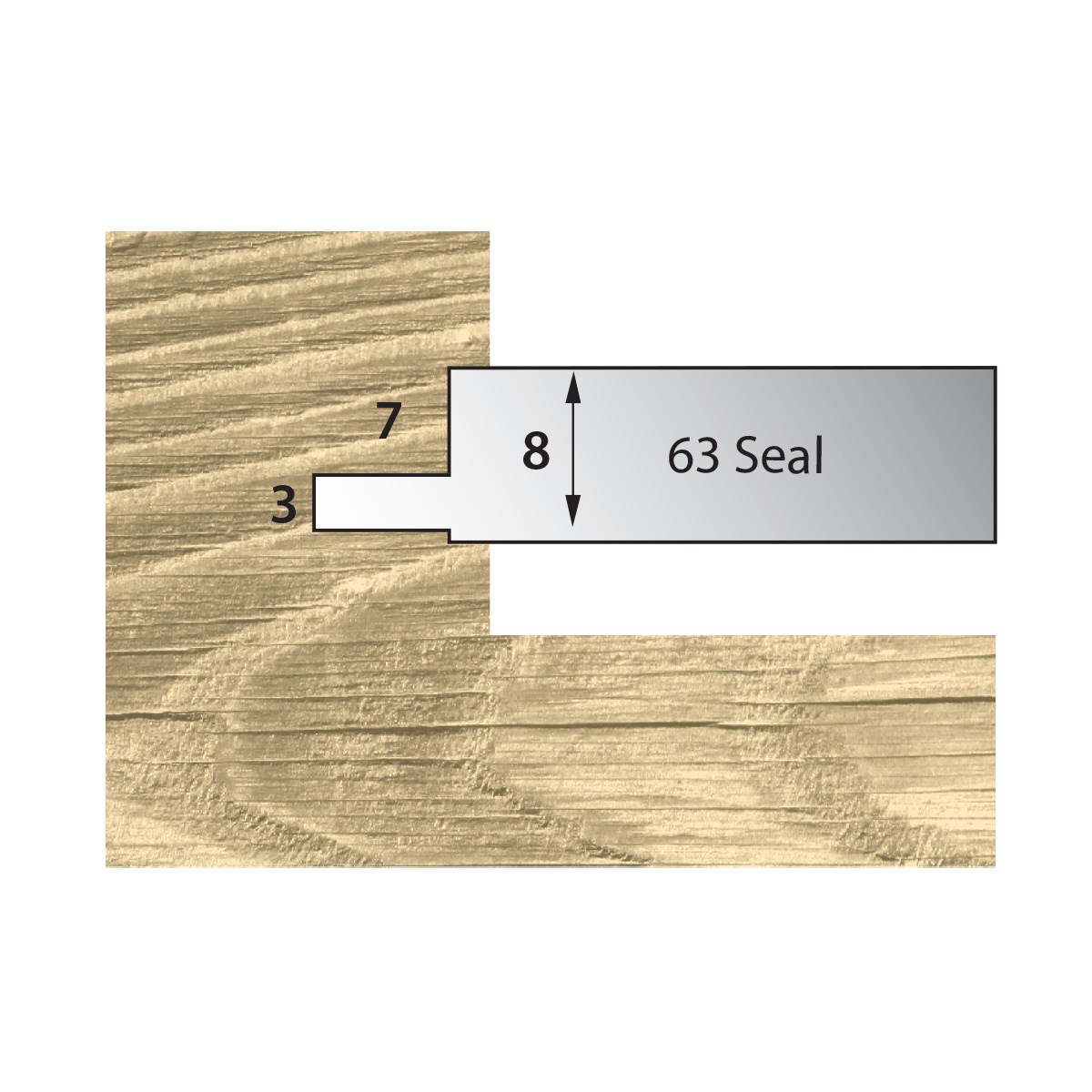

Whitehill TC tipped 63 tool is designed to cut a draught excluder slot groove to fit 63 seal into rebate of door or window frame. Large 214 diameter tool allows to run above rebate section on spindle moulder.
Features:
- Cutter head equipped with TC knives and spurs (can be found in "spares" section).
- These TC knives and spurs are in tungsten carbide, which will give a clean finish so no sanding is required.
- Fitted with 3mm groover tips.
- Suitable for spindle moulders with manual feed.
- Tool body available in aluminium.
- Available in 1¼ inch & 30mm bore for spindle moulder.
