21 Seal Heads

Name: 21 Seal Heads
SKU: CBS015V2
Price: 200.000000 GBP
Availability: InStock

Code CBS015V2

From

£200.00

(£240.00 including VAT)

Decrease

Increase

Add To Wishlist

Specifications

Height12 mm
Suitable for MDFYes
Max RPM8000 rpm
Number of Cutters2
Number of Spurs4
Screw Drive2.5mm Allen
MAN or MECMAN
Product Weight1 kg
Min RPM4500 rpm
Custom MadeOnly returnable if faulty - please see returns policy

View Terms & Glossary

Product Information
Reviews

Spares

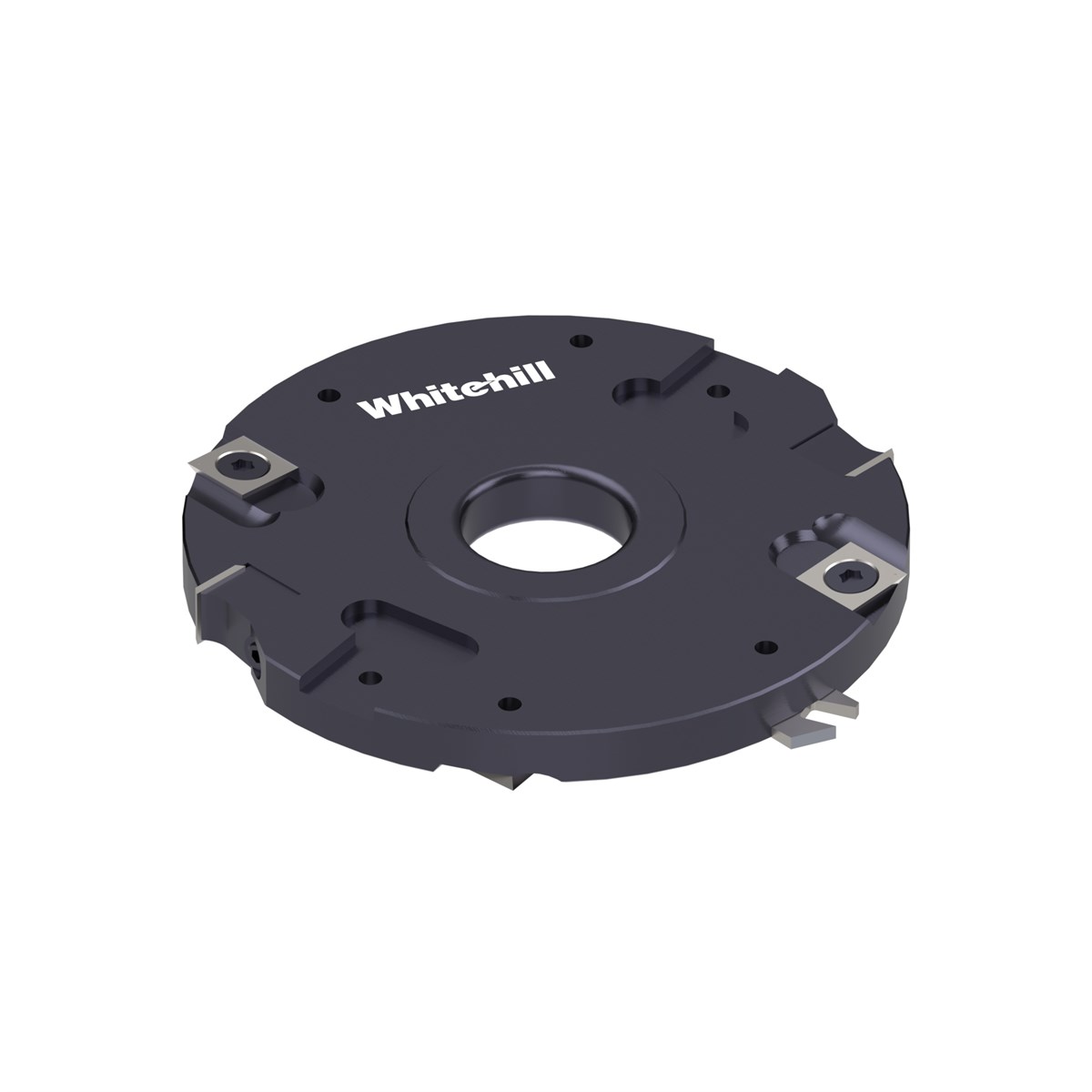

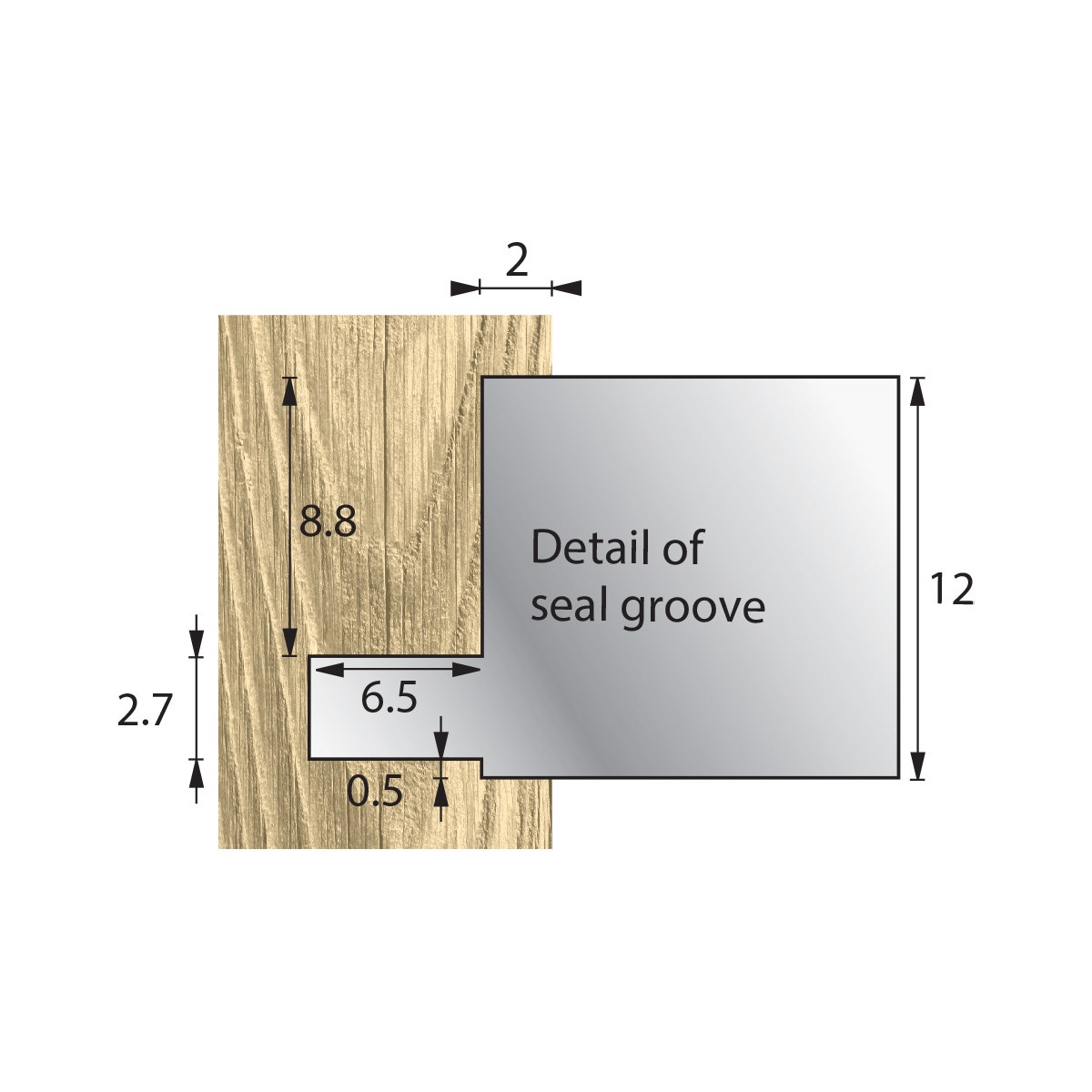

Whitehill TC tipped 21 Seal Head is designed to cut a slot groove to fit 21 seal into rebate of door or window frame. Specific tool diameter allows this tool to run in conjunction with 125 diameter rebate head to cut rebate and groove in one pass. Grooving slots are machined on both sides of the tool so it can be mounted both on top and underneath of the rebate head.

Features:

Cutter head equipped with TC knives and spurs (can be found in "spares" section).
These TC knives and spurs are in tungsten carbide, which will give a clean finish so no sanding is required.
Groover tips available in 2.7 or 3mm.
Suitable for spindle moulders with manual feed.
Tool body available in steel.
Available in 1¼ inch & 30mm bore for spindle moulder.
