Fits in 96 x 55 & 125 x 55 Heads

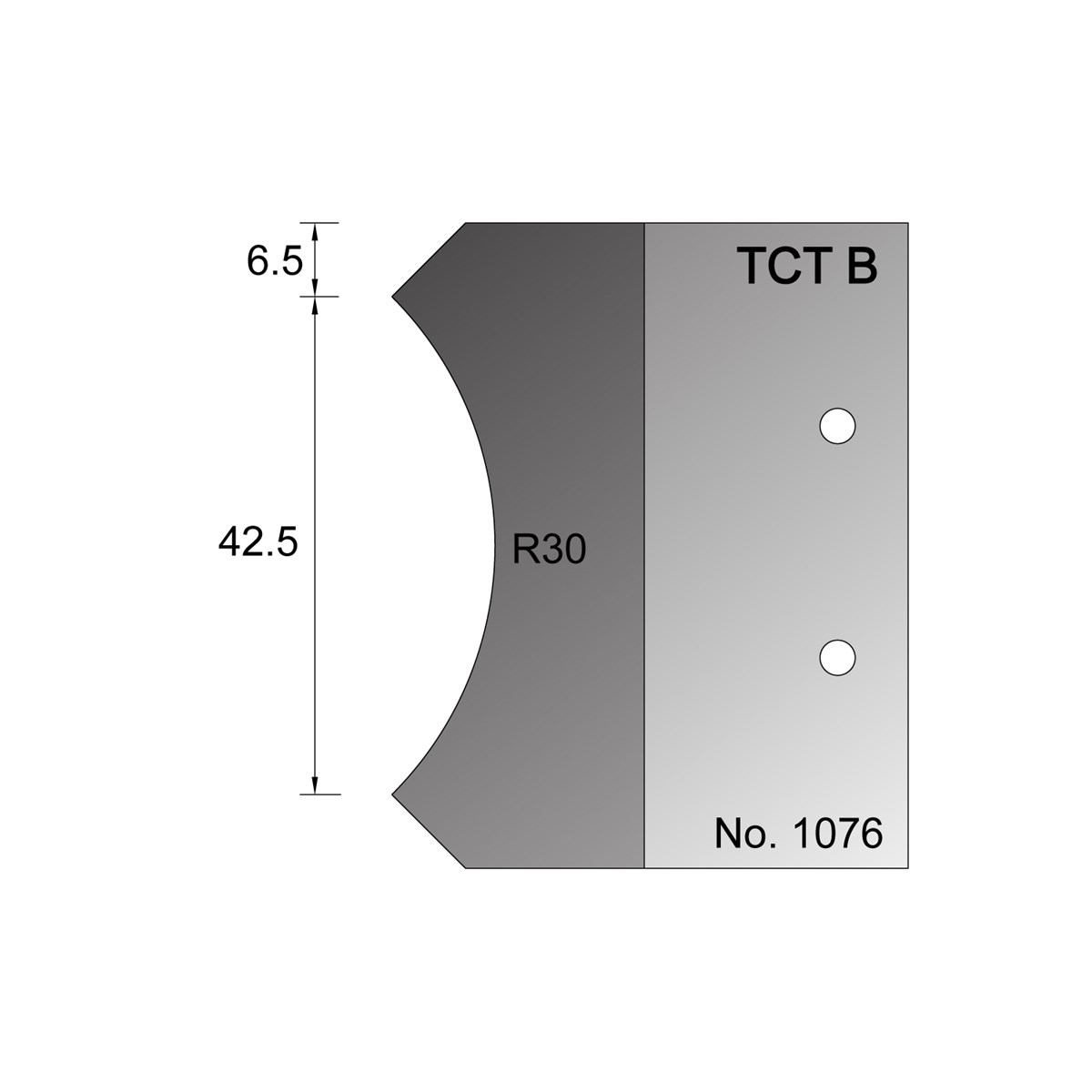

R30 Quadrant Profile Cutter in TCT

R30 Quadrant Profile Cutter in TCT

Code 003T01076
Estimated dispatch date 29 Sep 2023
Estimated dispatch date 29 Sep 2023
Estimated dispatch date 26 Sep 2023
£116.00per pair
(£139.20 including VAT)
£116.00per pair
Was £0.00
(£139.20 including VAT)
  • Width55 mm
  • Height45 mm
  • Suitable for MDFYes
  • Thickness4 mm
  • Product Weight0.075 kg
  • BlankTCT B Blank
  • Custom MadeOnly returnable if faulty - please see returns policy
View Terms & Glossary

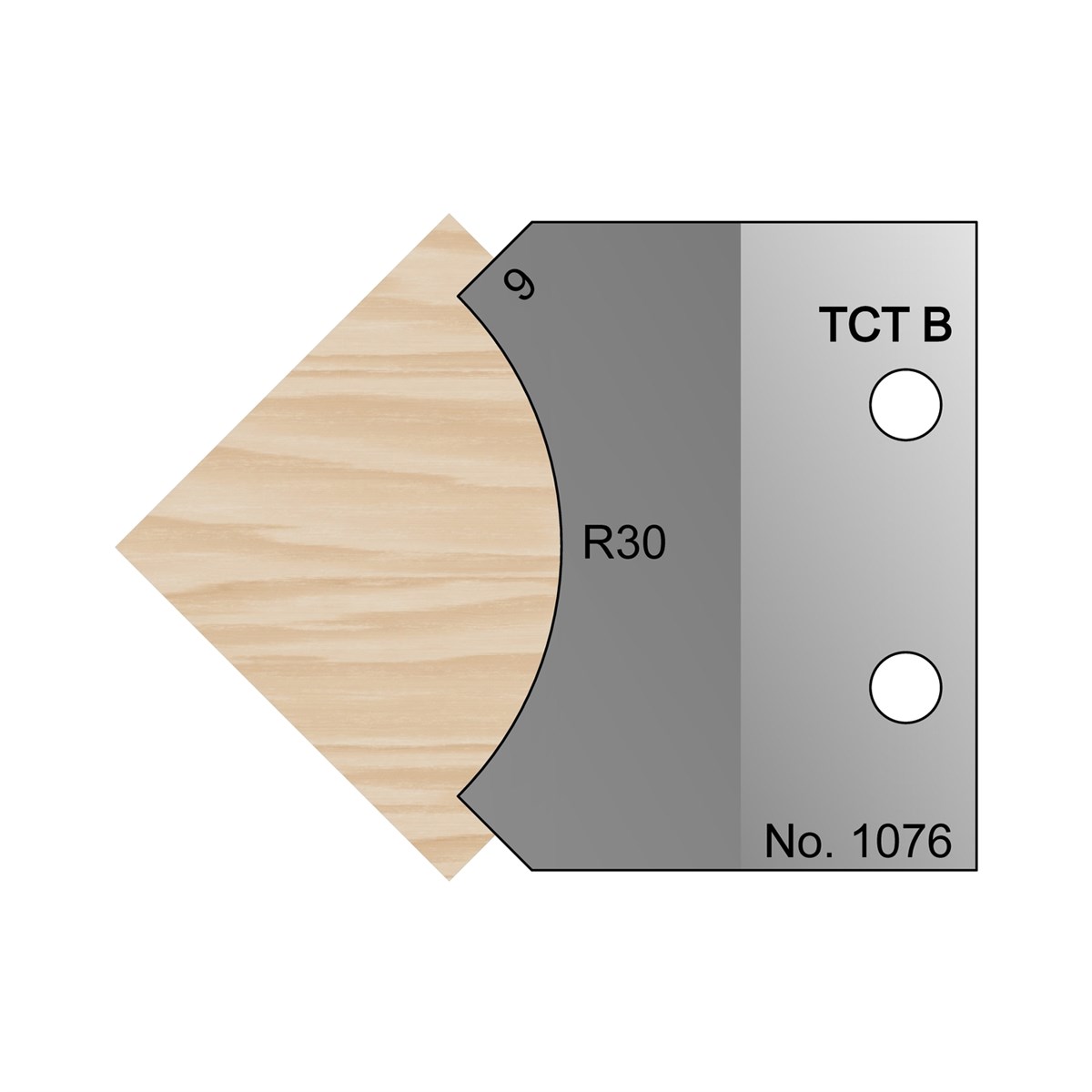

The 30mm radius is a quarter of a circle and to create a large ovolo the wood needs to be placed on a 45 degree false bed or have the spindle tilted by 45 degrees. These cutters are designed to manufacture MDF or timber. The tungsten carbide tip will resist the heat generated when MDF or timber is cut better than steel, resulting in sharp blades for longer. This cutter is suitable for the 96 x 55mm and 125 x 55mm limiter heads.
