Stormproof Window System

Whitehill's Stormproof tooling has been designed by our expert in-house block design team. We have provided a detailed guide on the Stormproof Window System. This includes information on the variety of options available when choosing this system of tooling.

This system provides a great solution for domestic dwellings situated in environments with regular, heavy rainfall. Longer cills are part of this design to aid the flow of rain water away from the window sash resulting in windows less affected by the wear and tear damage sustained water contact can produce.

Key Features and Benefits:

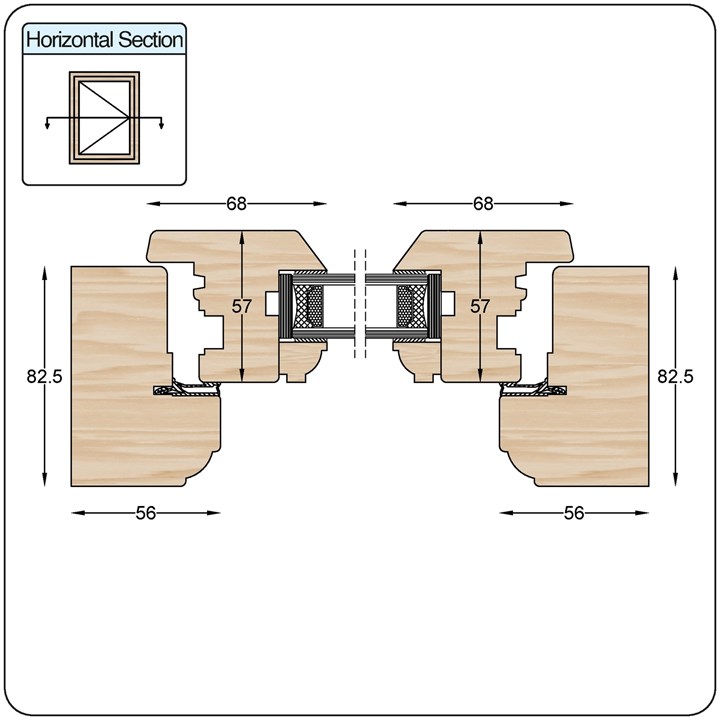

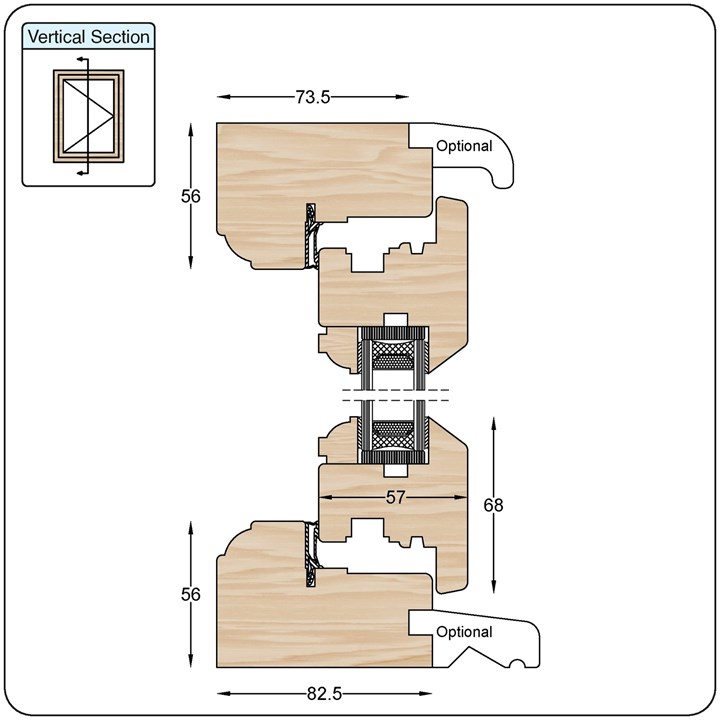

  • 82.5mm x 56mm frame section with 68 x 57 sash
  • Radius option for paint
  • Frame with single tenon or comb joint option
  • Comb jointed sash
  • Standard ovolo profile with bevel or lambs tongue option
  • 3mm grooves in frame for standard weather seals
  • Part Q certified
  • PAS24:2022 tested
  • U-Value 1.0 achievable (recommended timber: Softwood)
  • G-Value 0.7 achievable


Sash

HP_flush_window
Whitehill HP Flush Sash Outside Mould
HP_flush_window
HP_flush_window

Frame Tenon Options

HP_flush_window
HP_flush_window
HP_flush_window
HP_flush_window

Frame Mould

Stormproof_window_windowtooling
