160 x 130 mm 9 Deg Cill Z4 with Serrated Slot
Code CBS012V6
Specifications
- Height130 mm
- Diameter160 mm
- Suitable for MDFYes
- Max RPM8000 rpm
- Number of Cutters6
- Number of Spurs2
- Product MaterialALUMINIUM
- MAN or MECMAN
- Min RPM4500 rpm
CloseX
Stock Quantity
Decrease
Increase

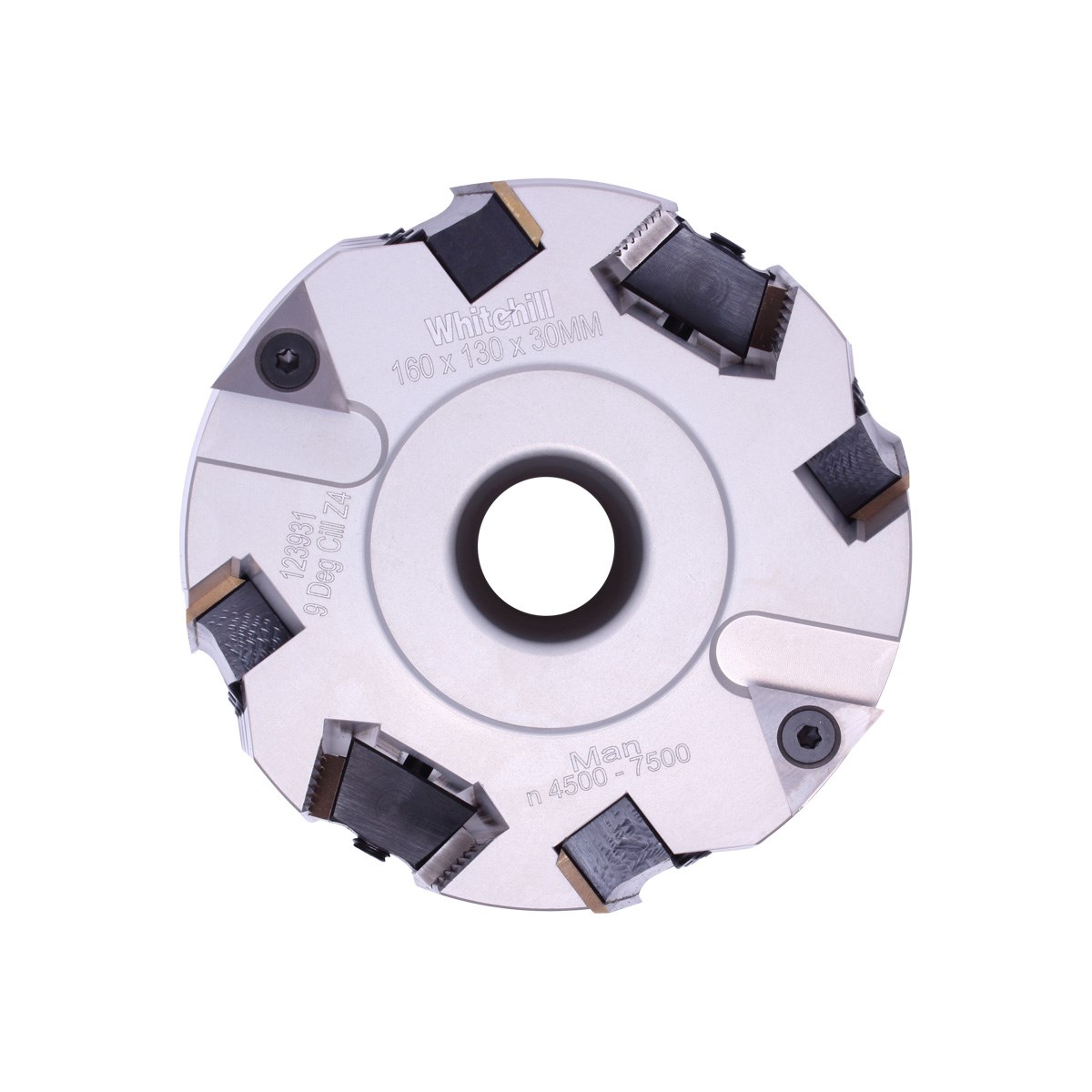

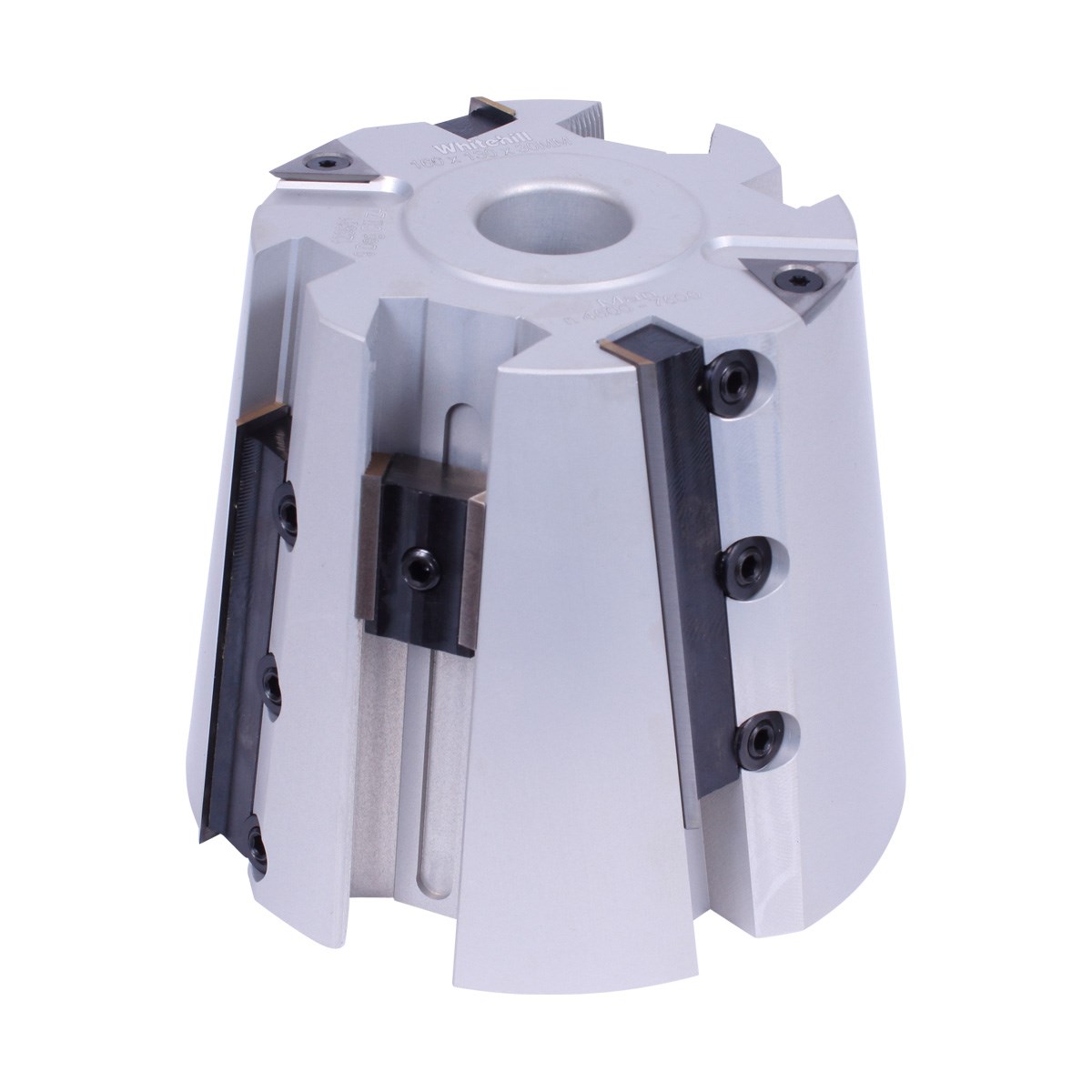

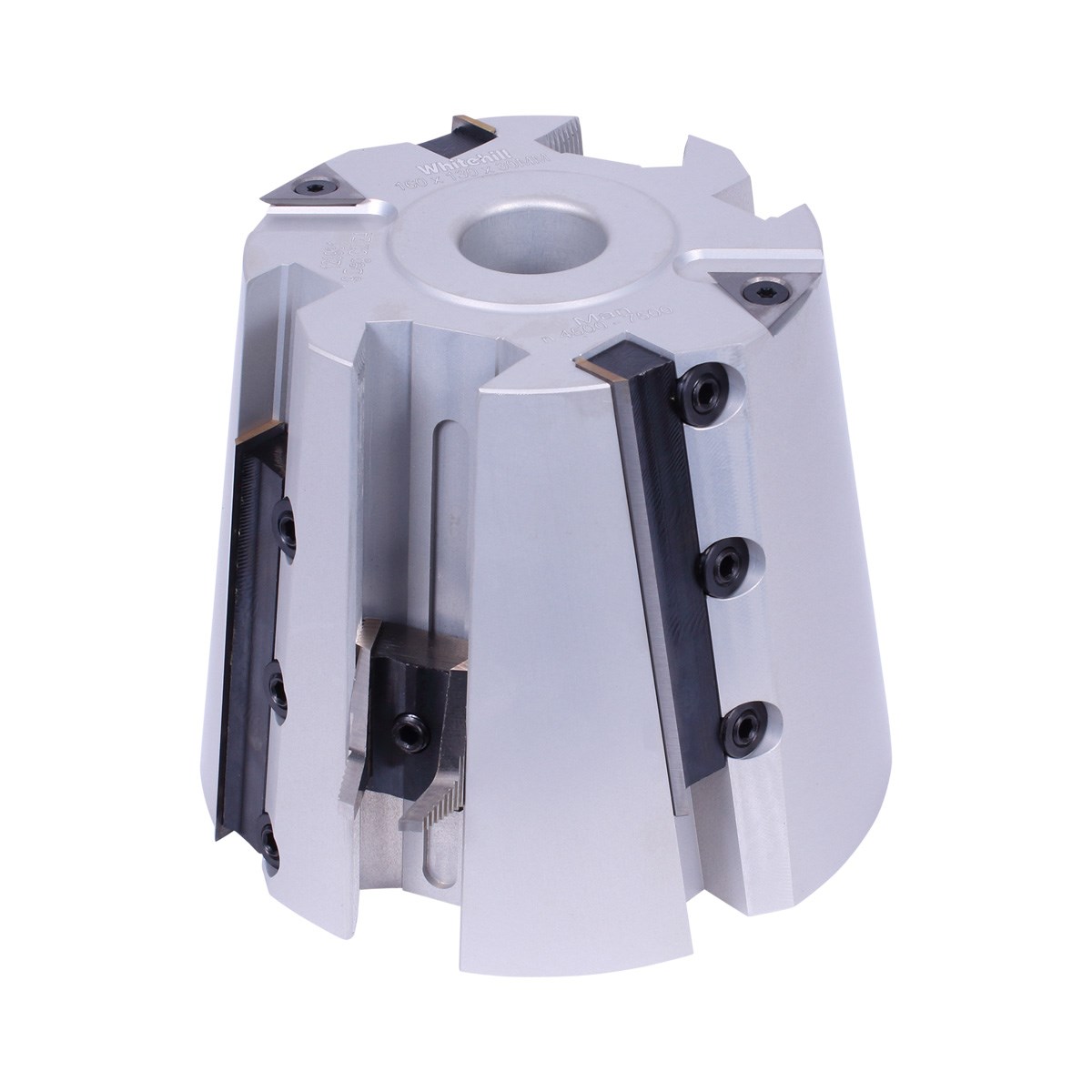

160 Diameter, 9 degree Cill Cutter Head Z4 Serrated Rad Slots. Cover up to 130mm material at 9 degree. Option of finishing a cill with an outside radius in the one pass. Can be used without profile blades for straight 9 degree cut.
Features:
- Cutter head equipped with TC reversible knives and spurs (can be found in "spares" section).
- These knives and spurs are in tungsten carbide, which will give a clean finish so no sanding is required.
- Can be equipped with serrated drip blanks (recommended knives can be found in "profile cutters" section).
- Suitable for spindle moulders with manual feed.
- Tool body in aluminium.
- Available in 1 1/4 inch & 30mm bore for spindle moulder.
