Sedgwick 175 x 65 x 30 mm Combi Head
Code CBS004V5
Specifications
- Height65 mm
- Diameter175 mm
- Suitable for MDFYes
- Keyway Size8 mm
- Max RPM7500 rpm
- Max Depth of Cut70 mm
- Product MaterialALUMINIUM
- MAN or MECMAN
- Product Weight4.3 kg
- Min RPM4000 rpm
- Bore Diameter30 mm
CloseX
Stock Quantity
Decrease
Increase

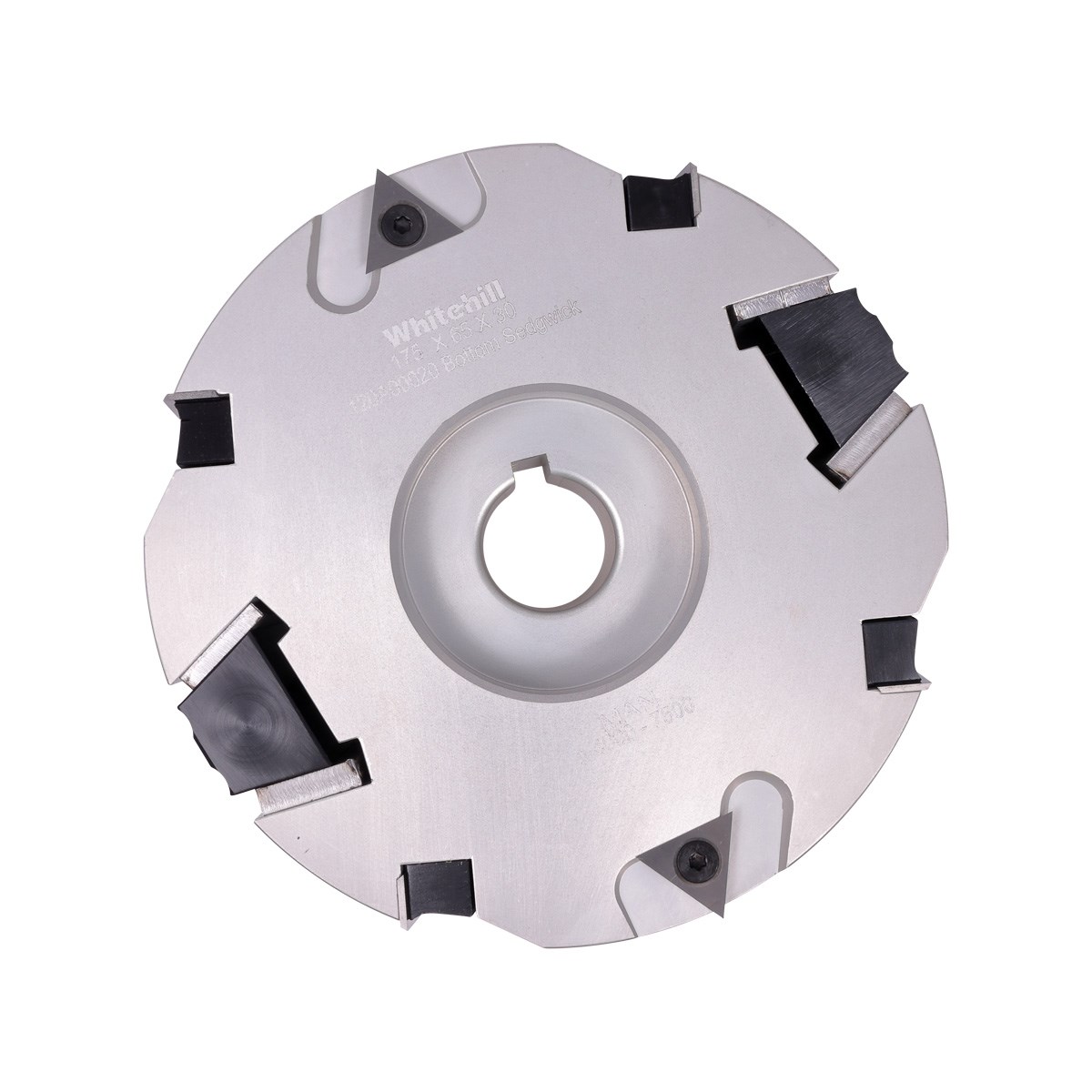

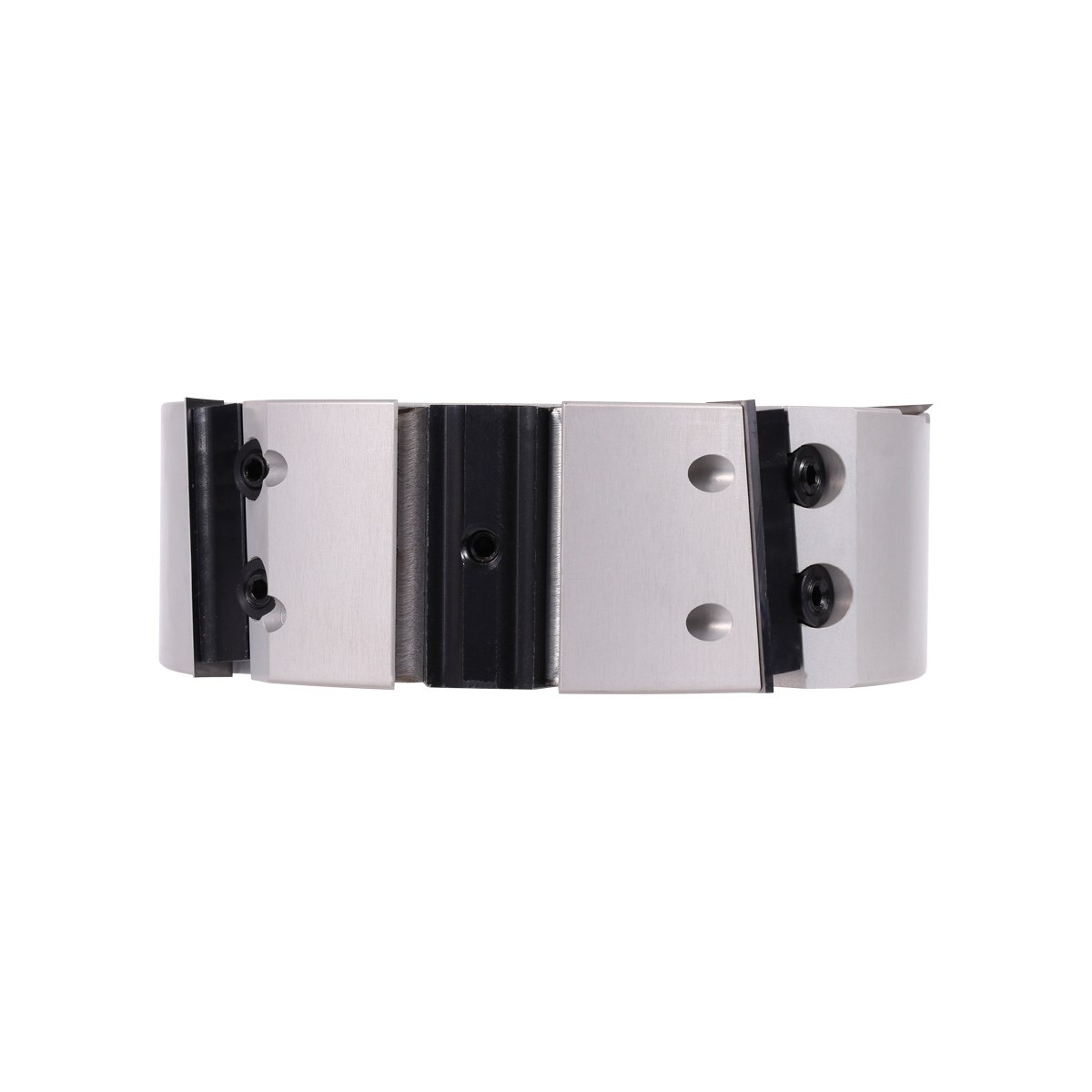

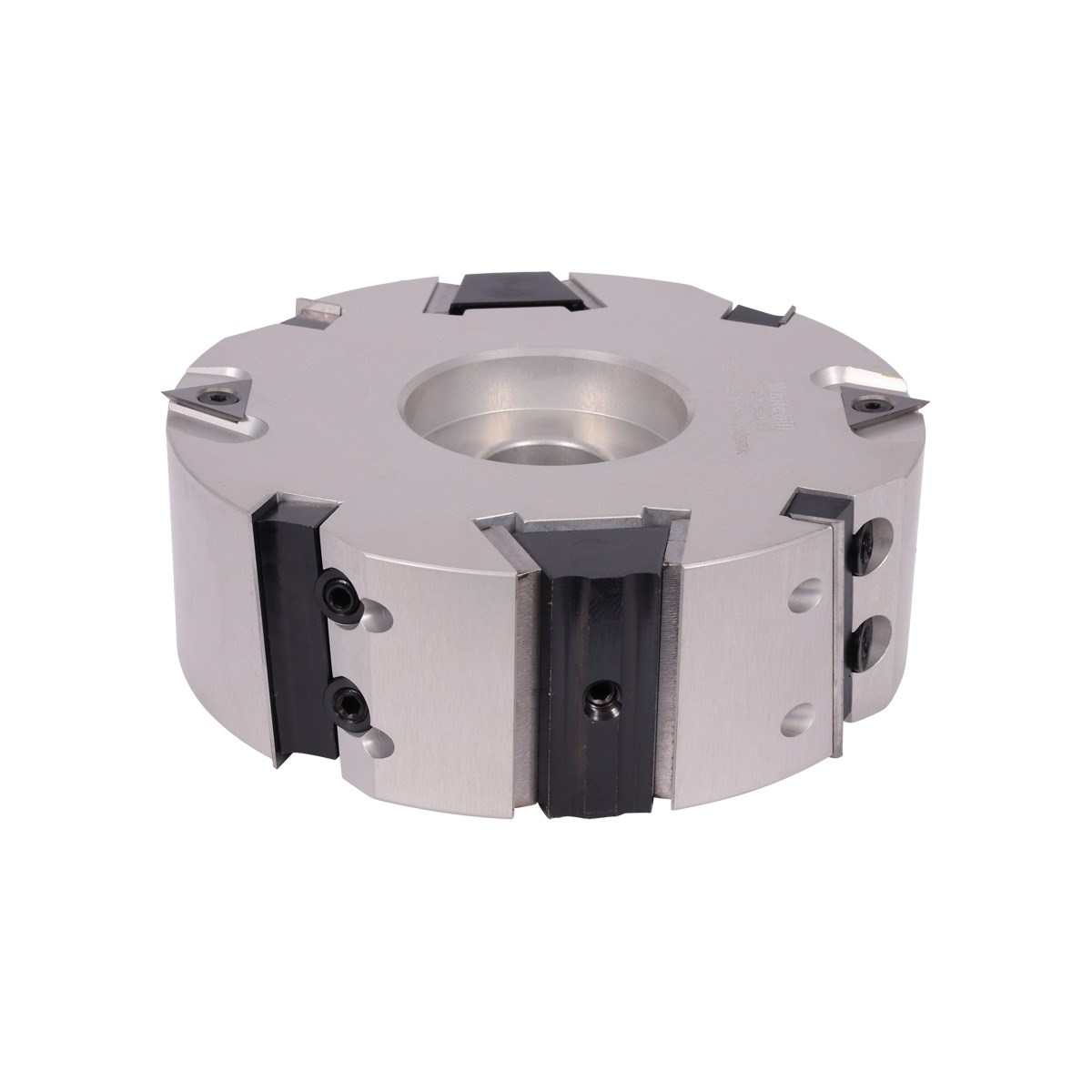

Whitehill have manufactured cutterheads that are a direct replacement for Sedgwick machines. The dimensions of the cutterheads are 175 x 65 x 30mm, available for both top and bottom positions on the machine.
Features:
- Compatible for G blanks (profiles sold separately).
- Cutter head equipped with TC reversible knives and spurs (can be found in "spares" section).
- These rebate knives are in tungsten carbide, which will give a clean finish so no sanding is required.
- Tool body in aluminium.
