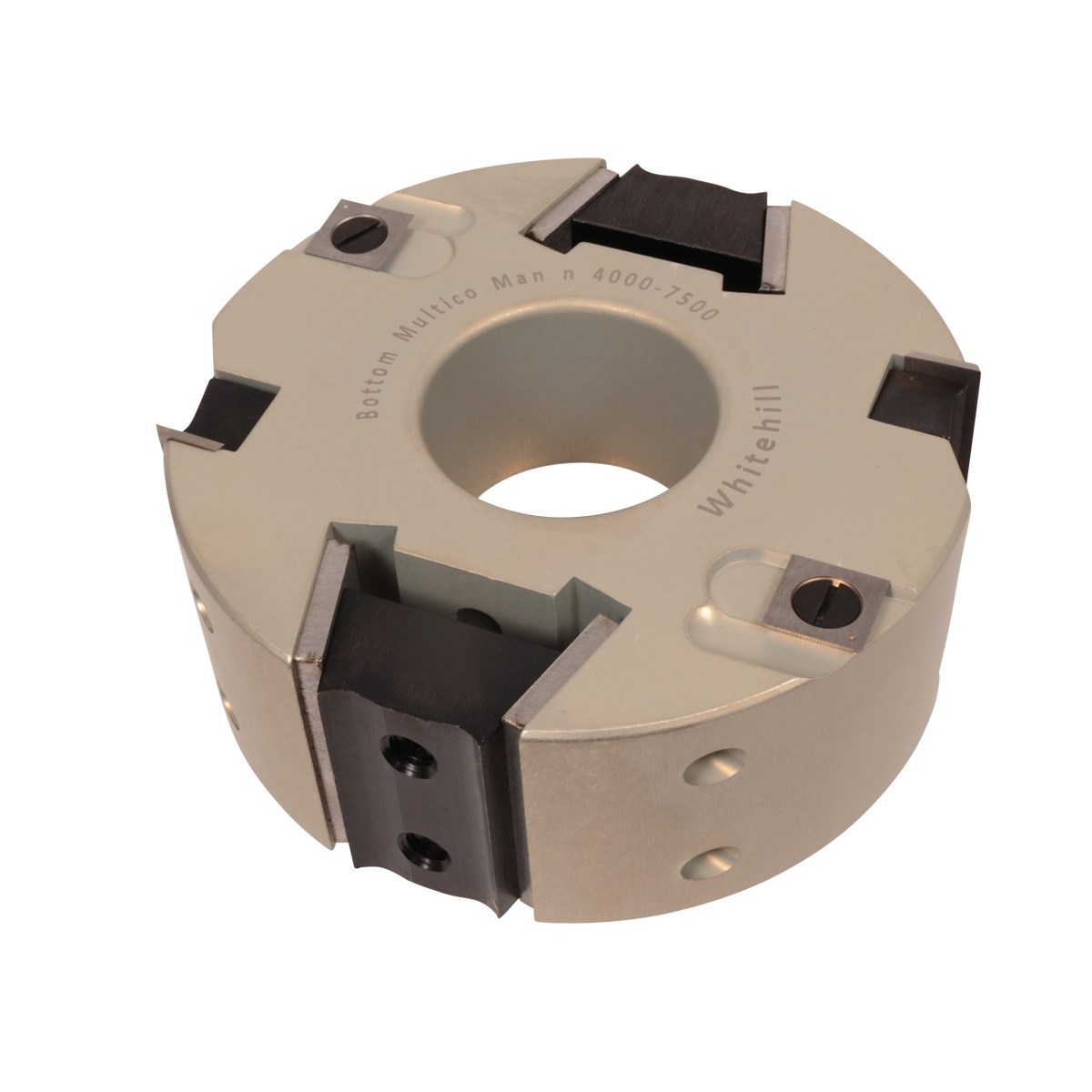

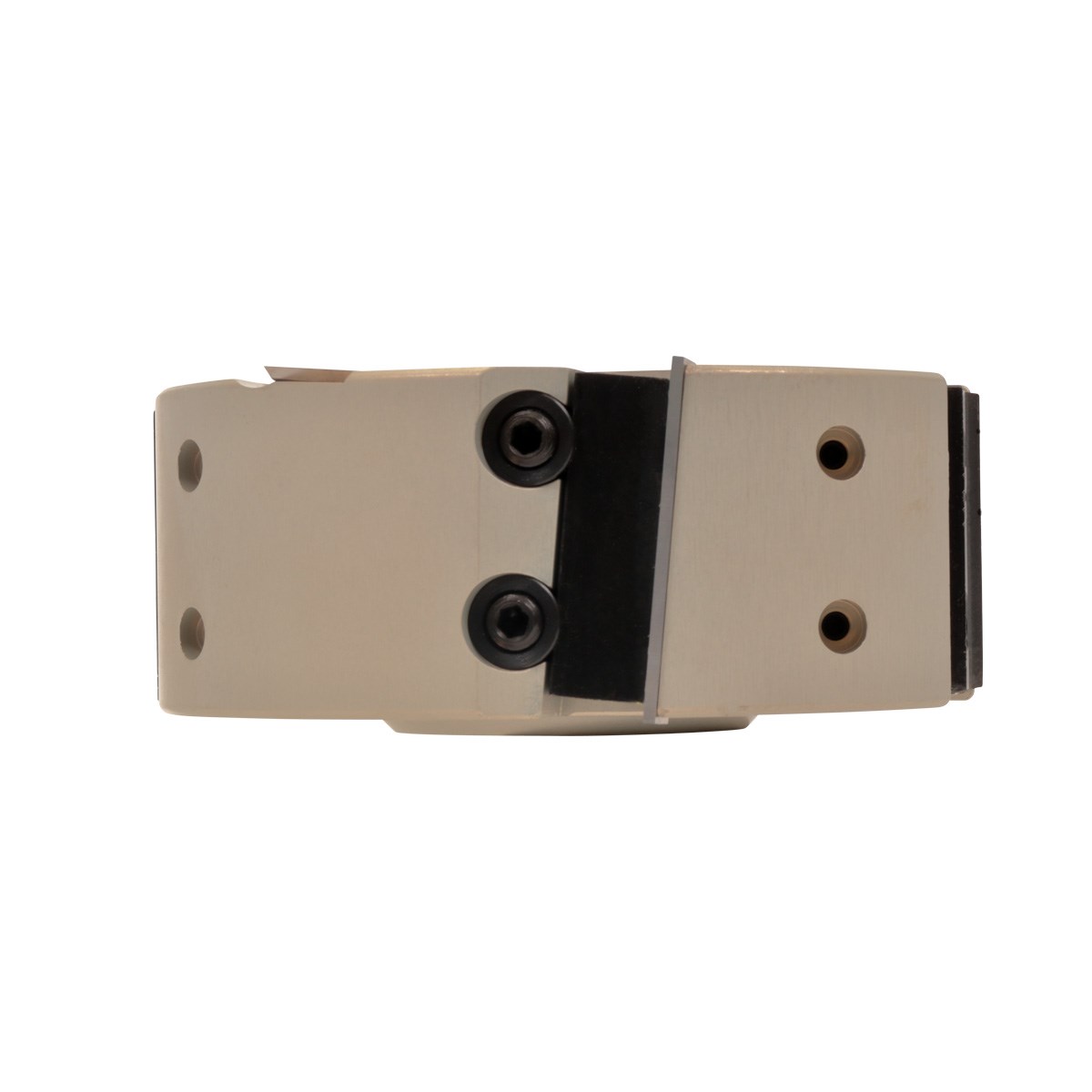

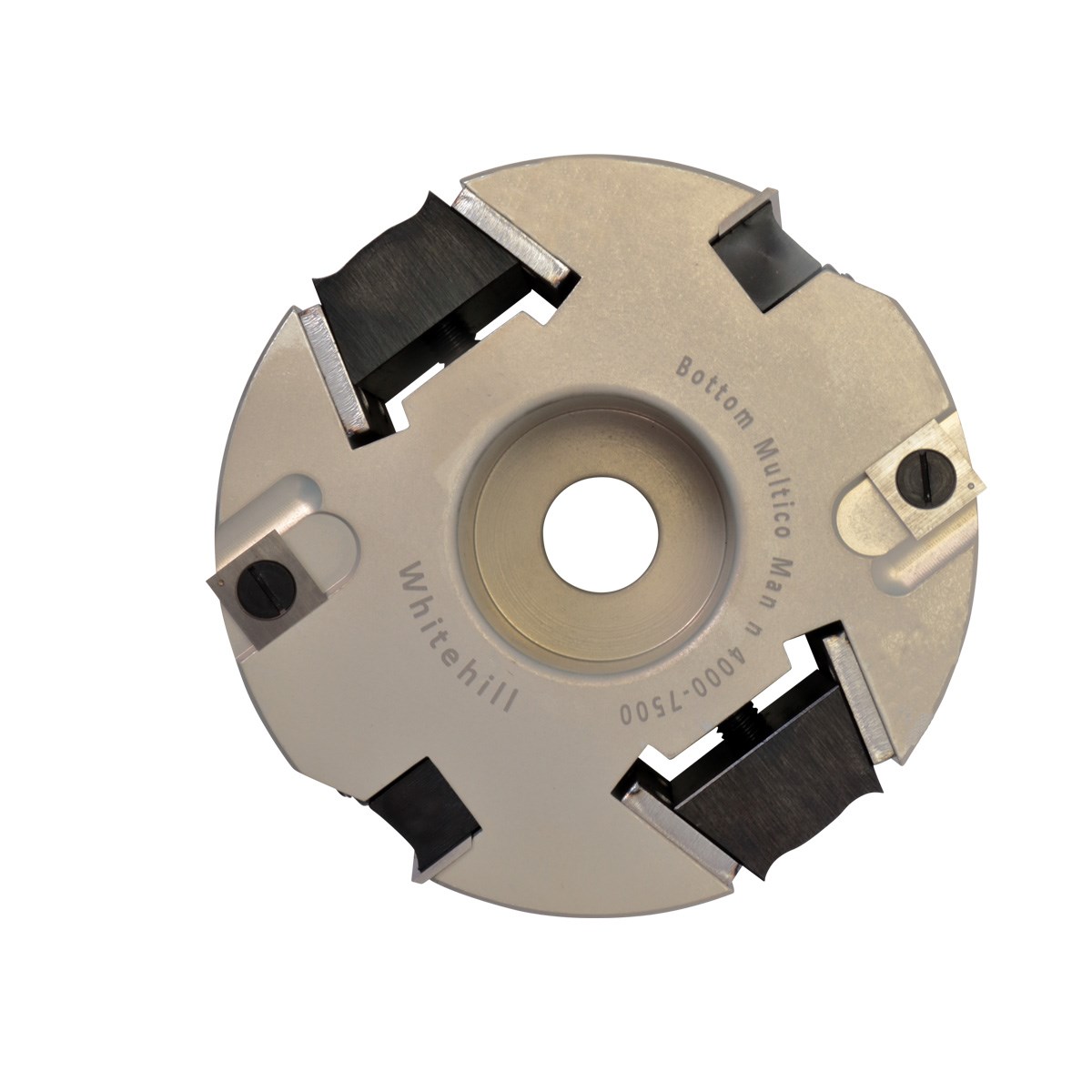

125 x 50 (55) mm Bottom Multico Combi Rebate & Limiter Head
Code 120S00110
15 In Stock
Specifications
- Height50 mm
- Diameter125 mm
- Max RPM7500 rpm
- Product MaterialALUMINIUM
- Max Cutting Diameter125 mm
- Top or Bottom?Bottom
- MAN or MECMAN
- Product Weight1.7 kg
- Min RPM4000 rpm
CloseX
Stock Quantity
Decrease
Increase
Rebate/limiter profile combi head for two headed Multico Tenoner. Rebating section for square tenons and profile section for profile scribe. To take 55 mm B and C profile blanks and 50 mm TC reversible rebate blades. Design with recess to flush mount both heads on 20 mm shafts. Supplied with TC rebating section (inc. spurs), profile scribes sold separately. Body in light aluminium.
