172 x 150 x 1¼" Bore Dominion BXA Tenoner Head Top & Bottom
Code 120A00050
Estimated dispatch date 18 Oct 2023

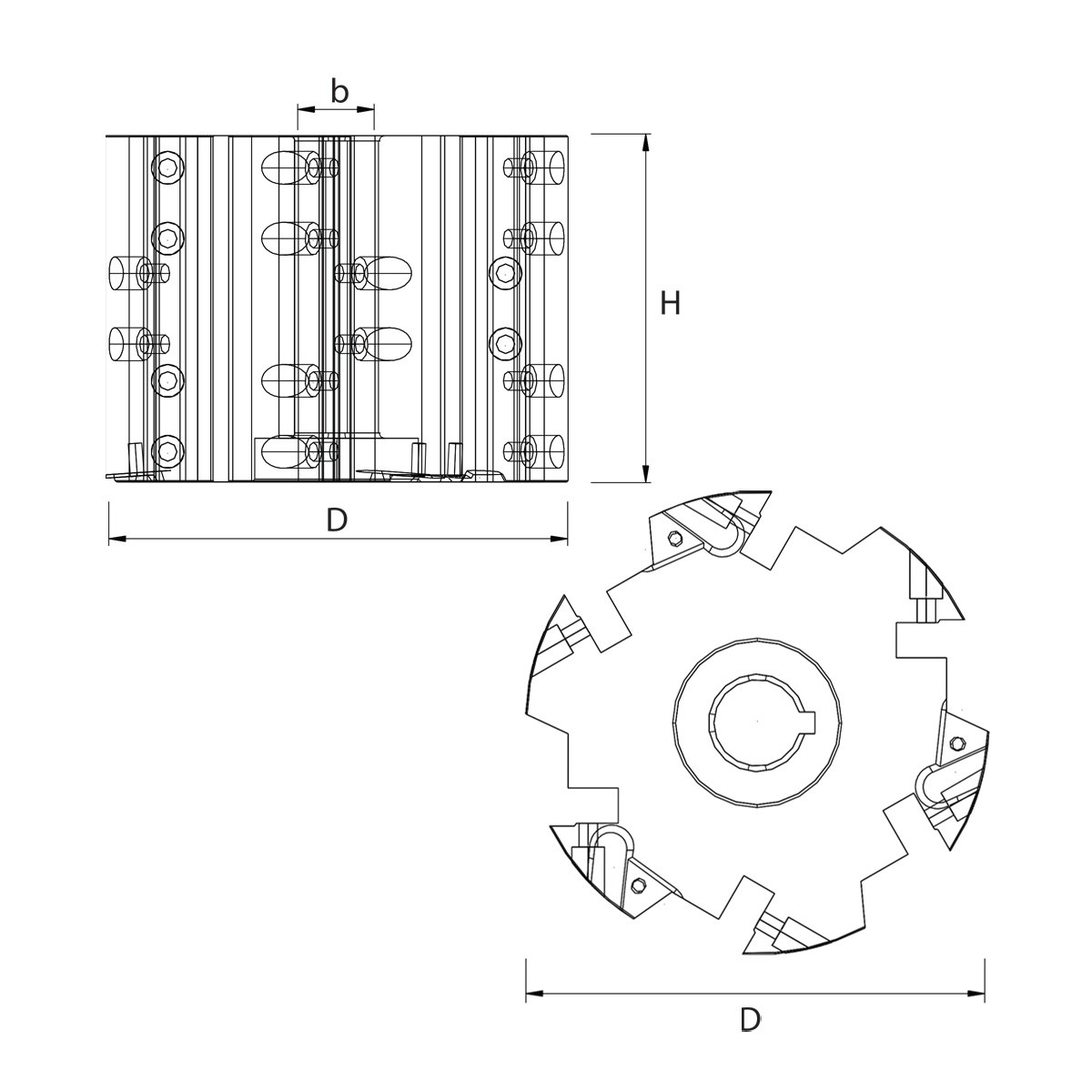

Specifications
- Height150 mm
- Diameter172 mm
- Suitable for MDFYes
- Keyway Size10 mm
- Max RPM8000 rpm
- Product MaterialALUMINIUM
- MAN or MECMAN
- Product Weight20 kg
- Min RPM4500 rpm
- Bore Diameter1 1/4 inches
CloseX
Stock Quantity
Decrease
Increase

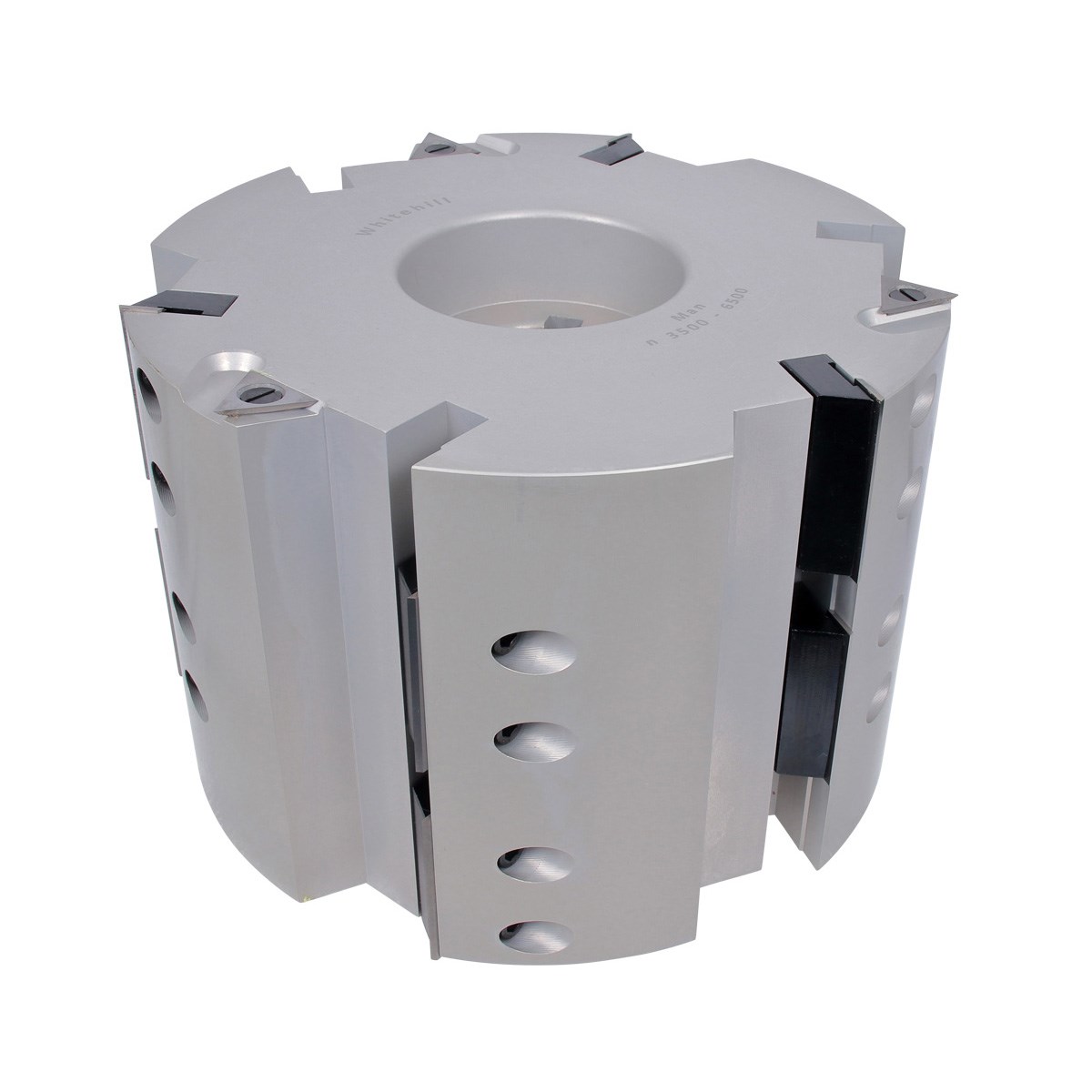

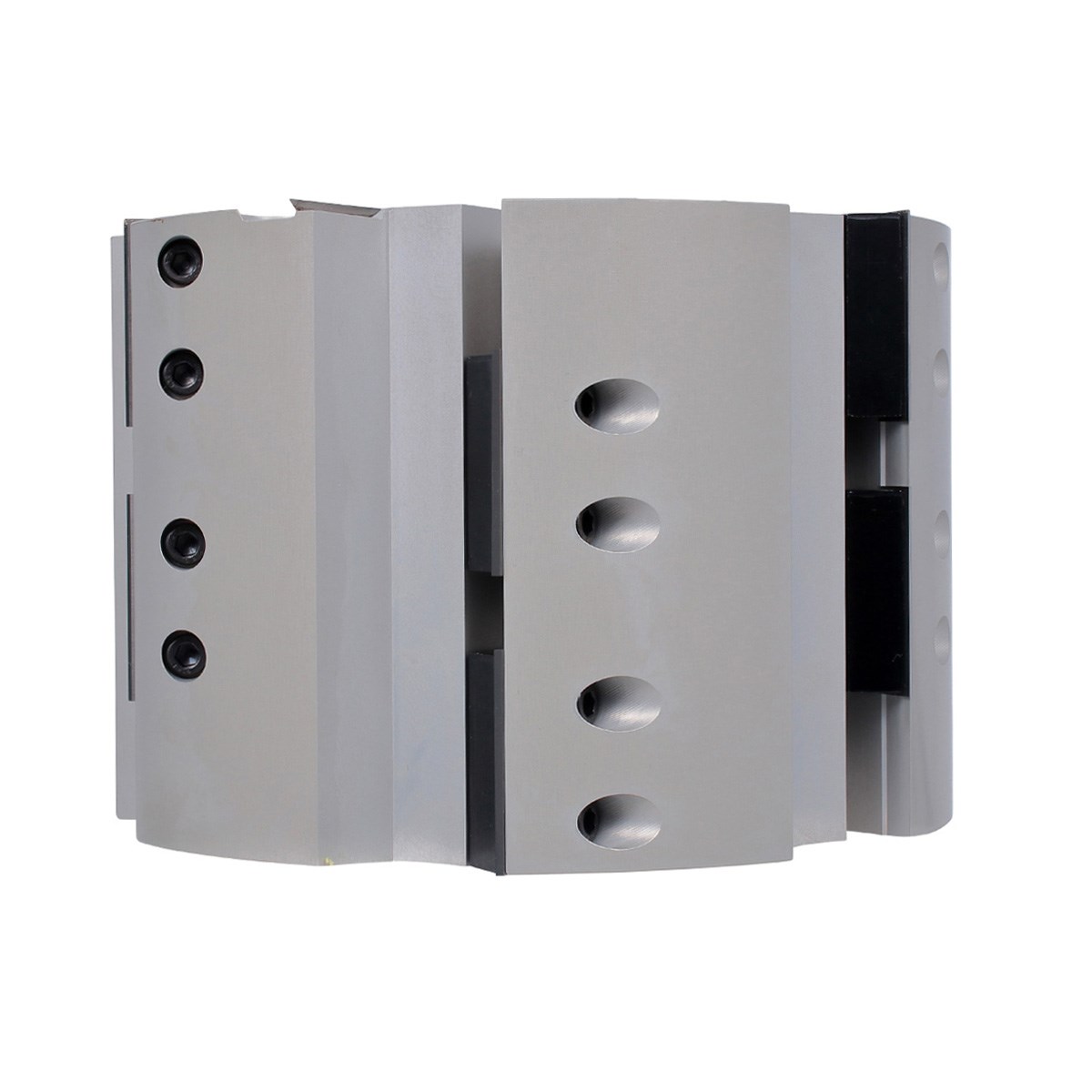

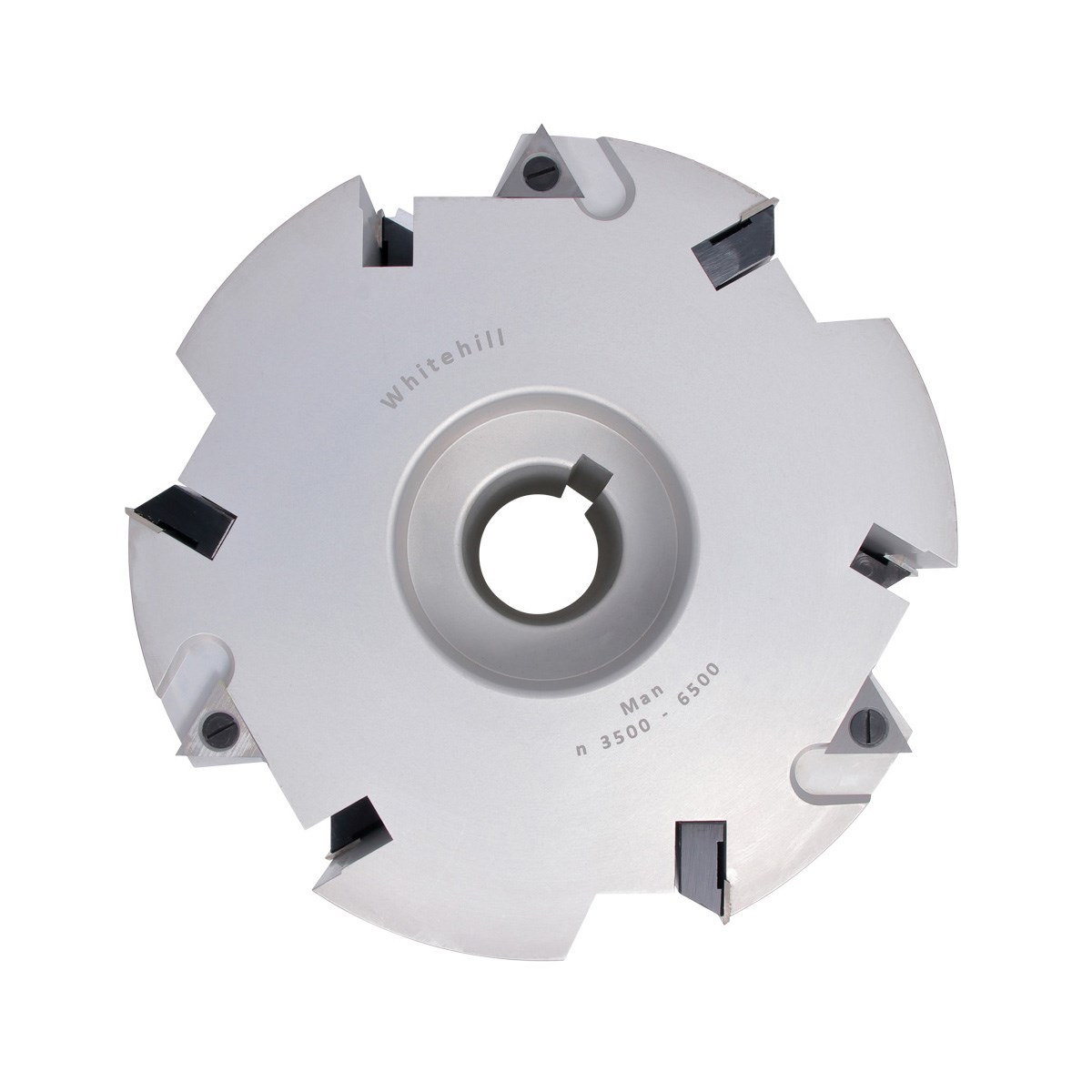

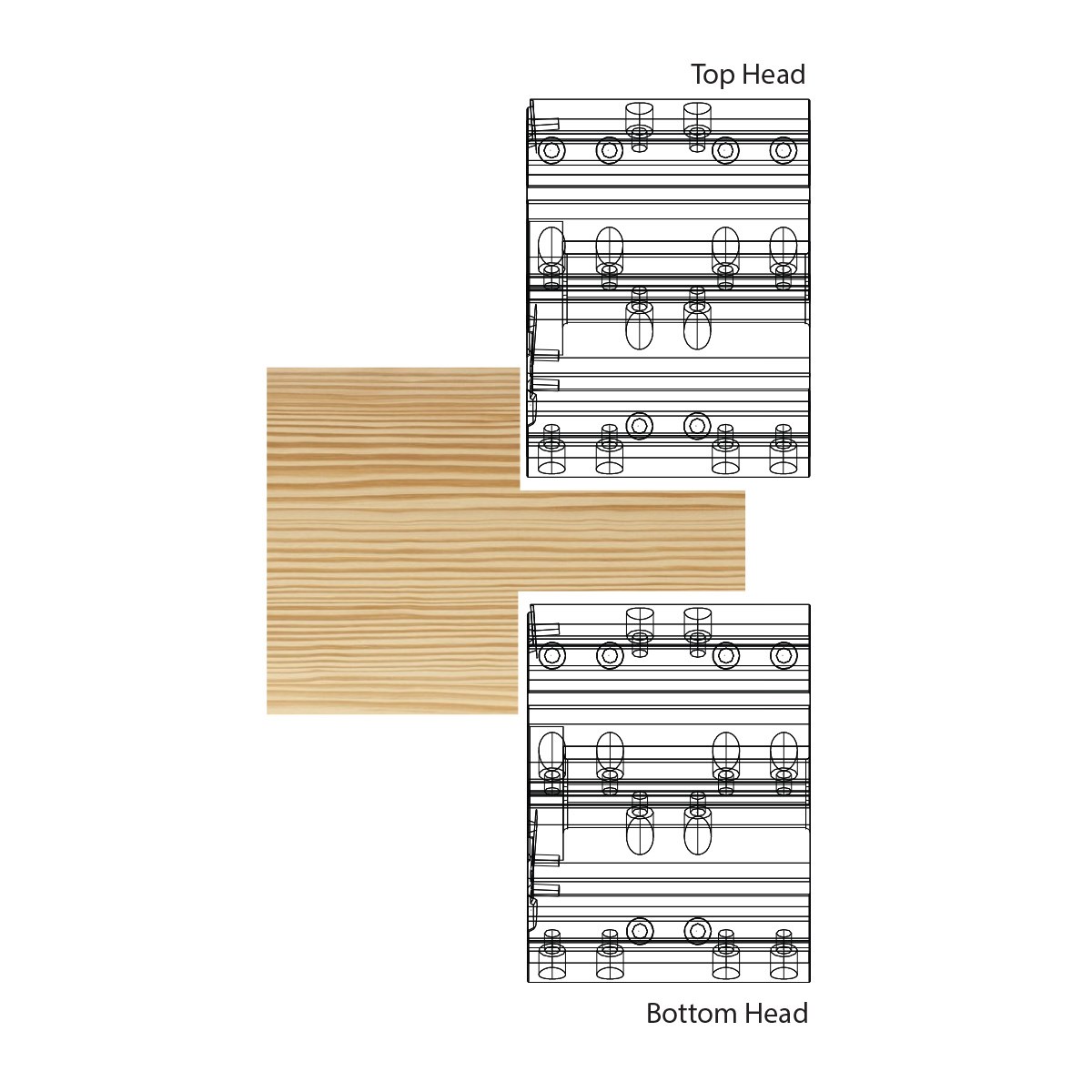

1 Pair Top and Bottom Main square TC replacement heads for horizontal shafts on tenoning machines. Standard sizes for most popular tenoners available. Fitted with TC reversible Rebate blades and scribing spurs. Body in Aluminium. Each block weighs 10 kg
