HP Flush Window System
The Whitehill HP flush window is a modern high-performance successor to the Stormproof window with a flush frame, twin seals, espagnolette locking system (espag) & friction hinges. This style of window is extremely versatile and can be used in buildings of almost any architectural style. We have launched a new add-on for this window tooling to manufacture Triple-Glazed Windows, which is designed to improve sound-proofing. Our window system has been PART Q PAS24 tested and approved. We have created compliance reports and ‘setting up’ guides that must be followed to ensure manufactured windows are PART Q compliant.
Key Features and Benefits:

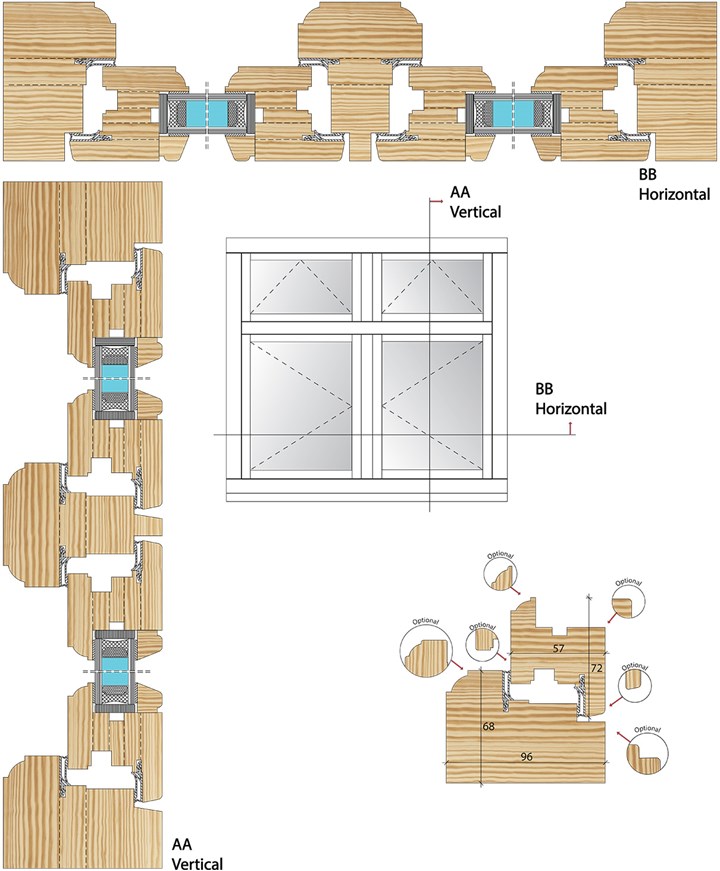

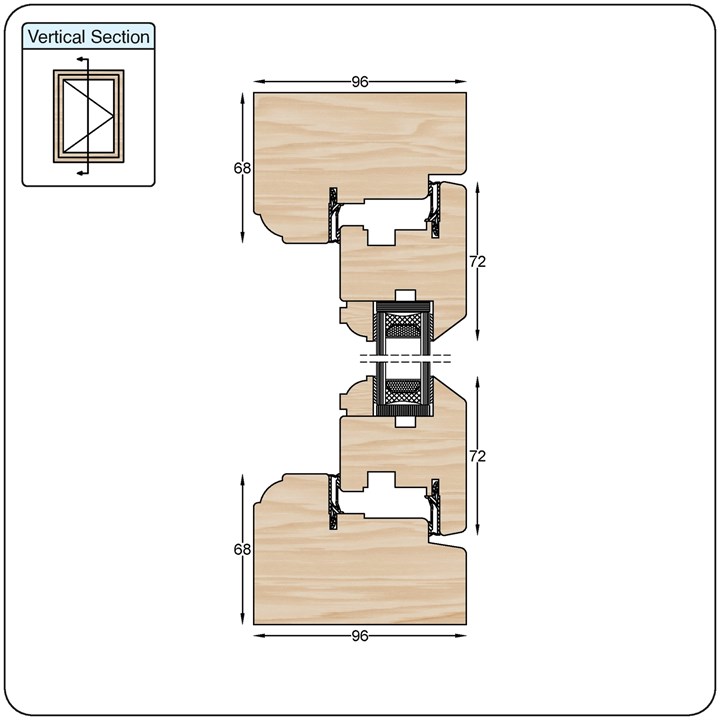

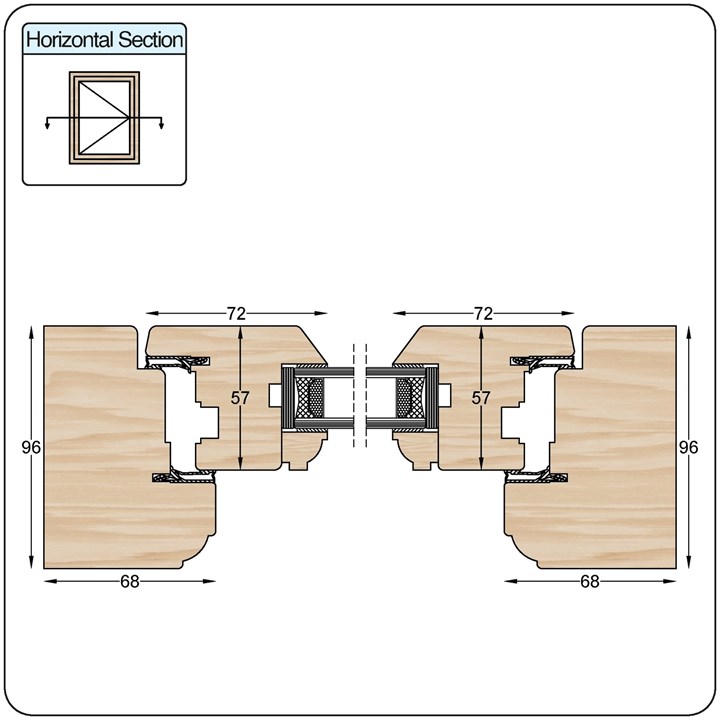

- 96mm x 68mm frame section with 72 x 57 sash
- Radius option for paint
- Frame with single tenon or comb joint option
- Comb jointed sash
- Standard ovolo profile with bevel or lambs tongue option
- 3mm grooves in frame for standard weather seals
- Triple glazing option available
- Part Q Compliant
- PAS24:2022 Tested
- U-Value 1.0 achievable (recommended timber: Softwood)
- G-Value 0.7 achievable

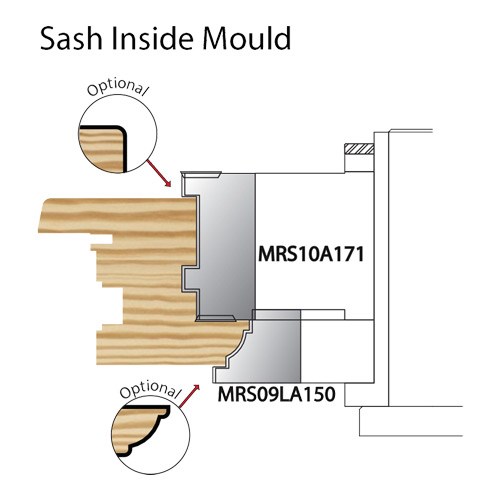

Sash Mould Profiles

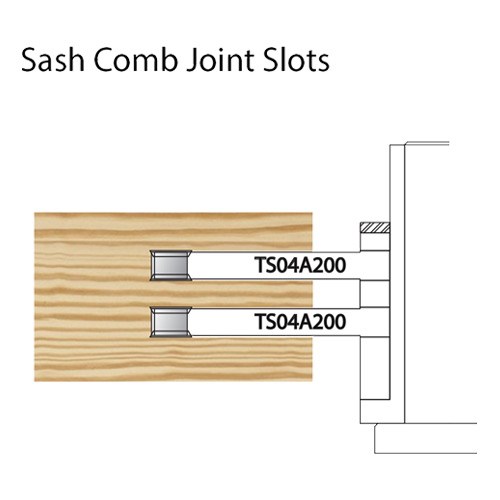

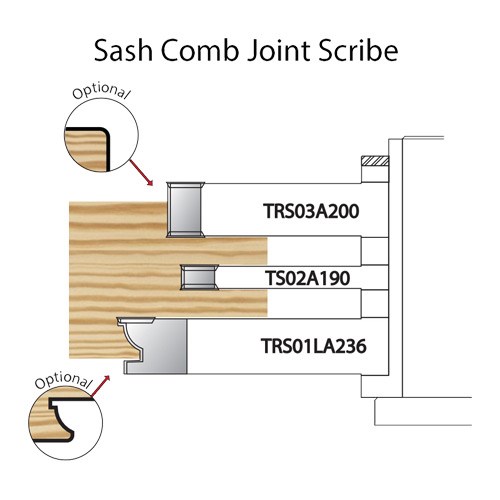

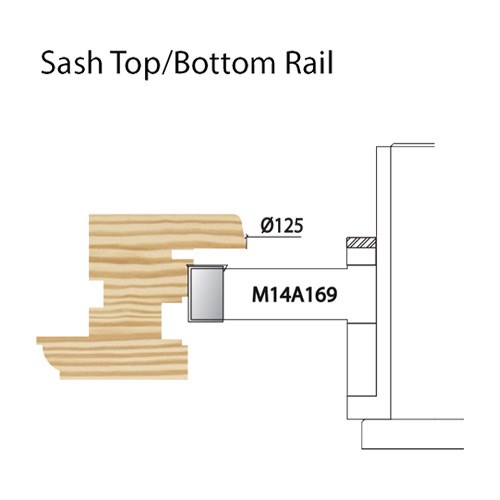

Sash Comb Joint Tooling

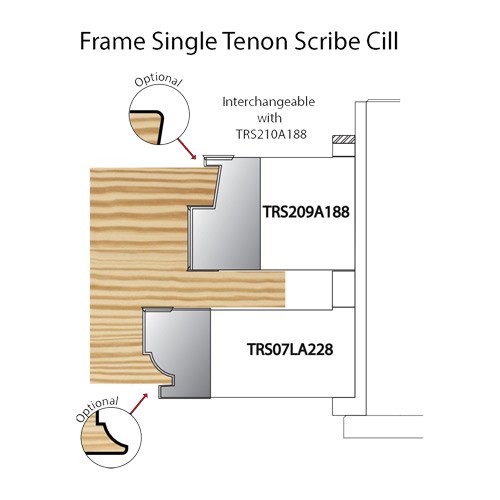

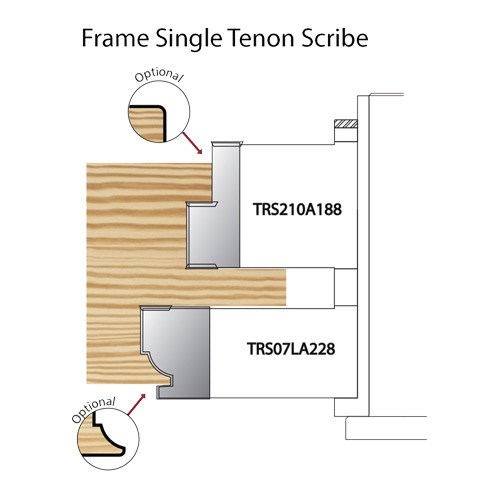

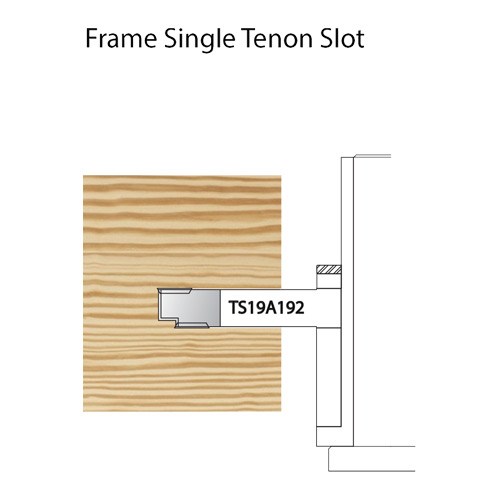

Single Tenon Frame Tooling

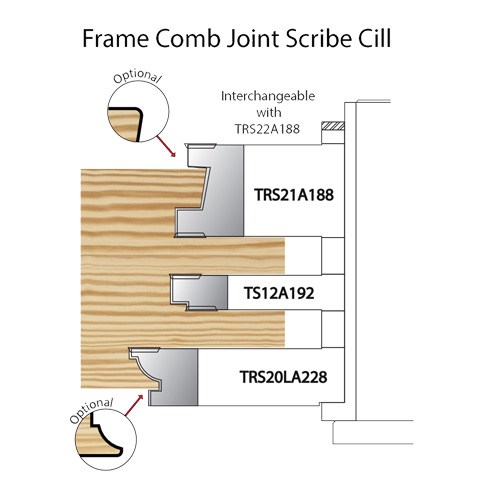

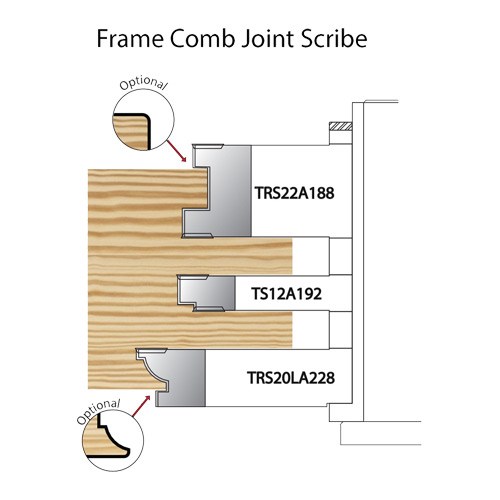

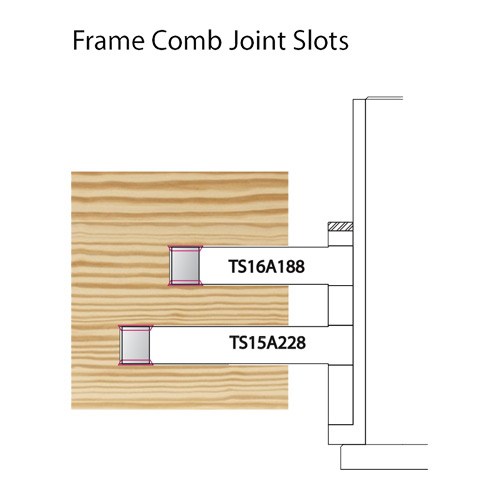

Comb Joint Frame Tooling

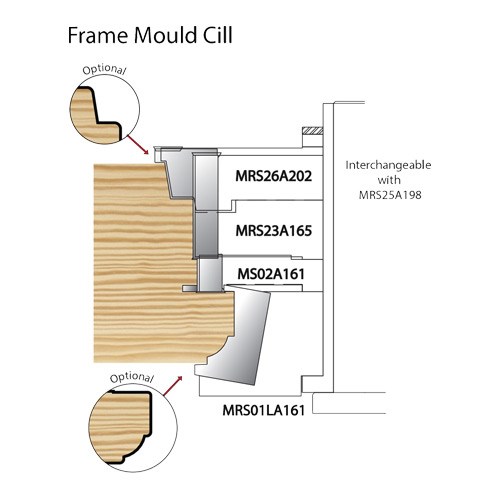

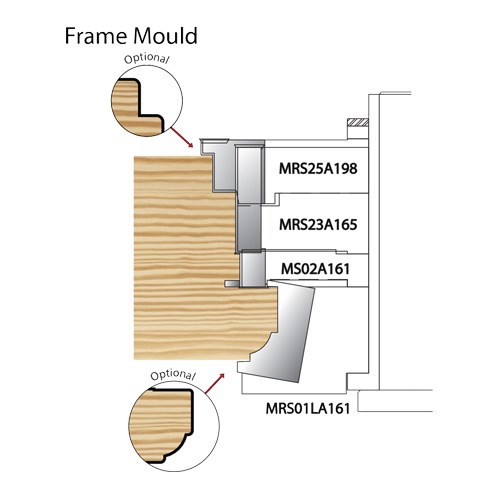

Frame Mould
